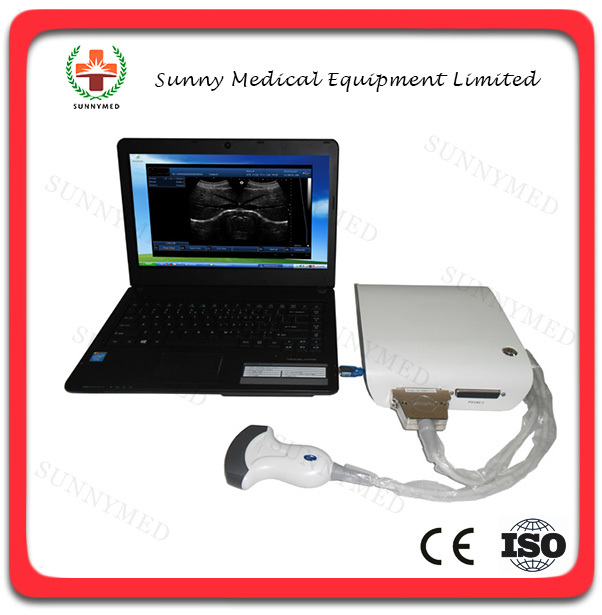

only need to connect it to computer by USB cable and install the software in the computer.
Then can realizable the function as a computer based ultrasound B Scanner. The keyboard is use the computer keyboard, by software you can define your own computer
keyboard keys to a certain function button. Such as the “Space” key can be defined as “Freeze”
button, the “+” and “-” can set to value increase and decrease, all by your define.

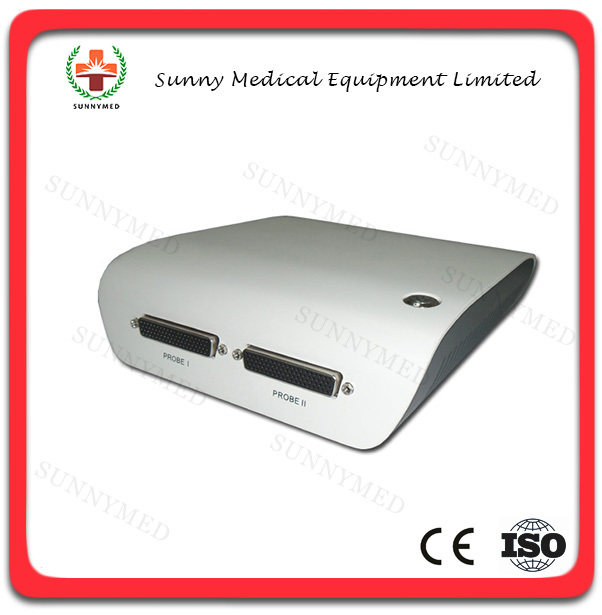

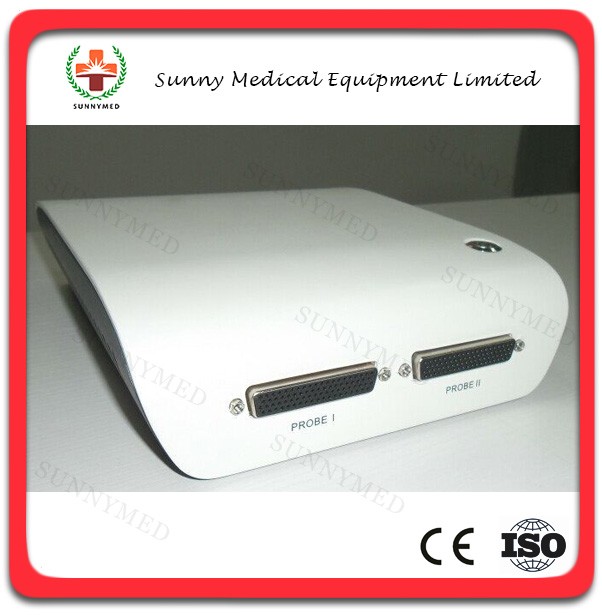

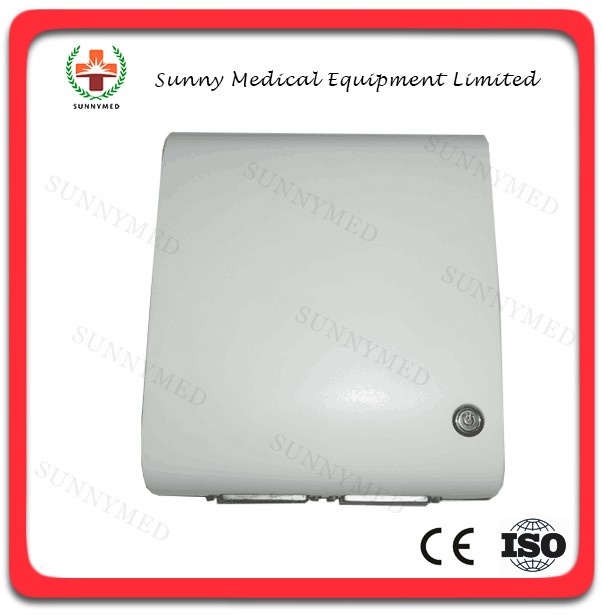

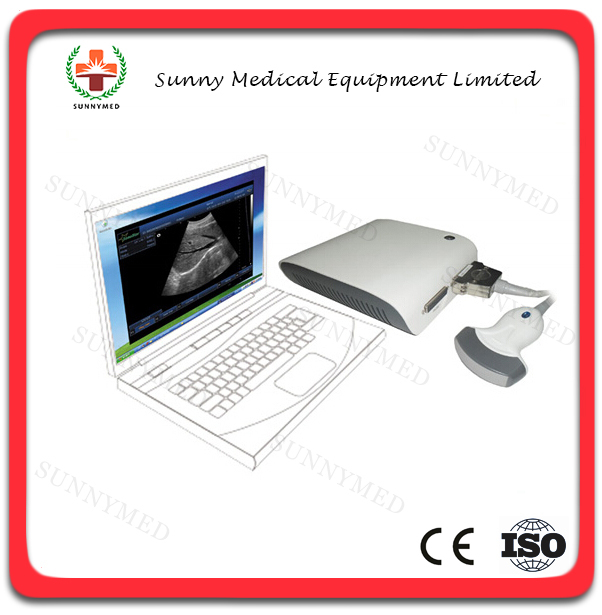

SY-A010 Ultrasound B Scanner Box Can work with any windows computer ,

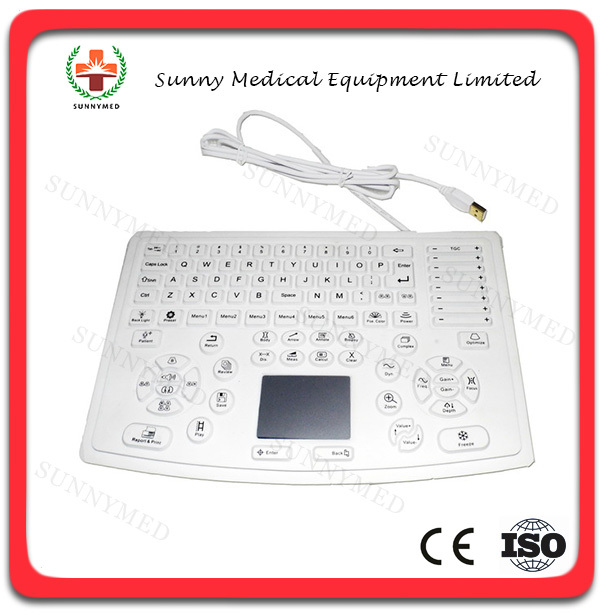

Also can option a special ultrasound keyboard

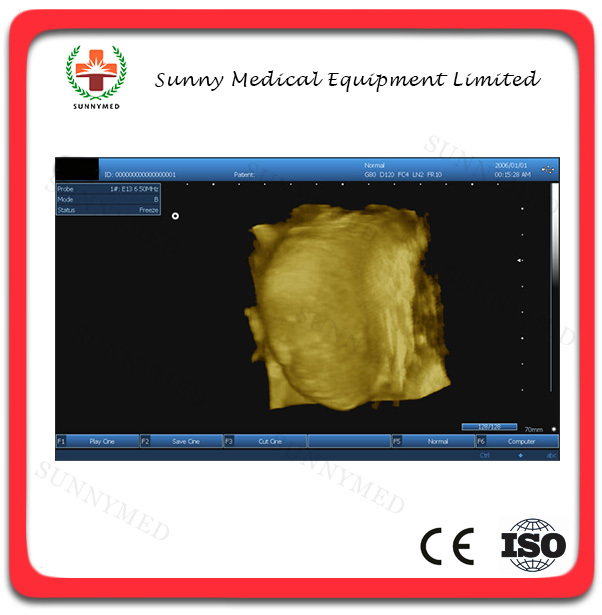

-Use computer of user’s, lost cost to get ultrasound scanner -Small and light -PC based, powerful function, large volume storage -Full digital, clear image -3D image function(option) -Silica gel waterproof ultrasound keyboard(option) -Print by computer’s USB laser/inkjet printers -Can work with external battery(option)

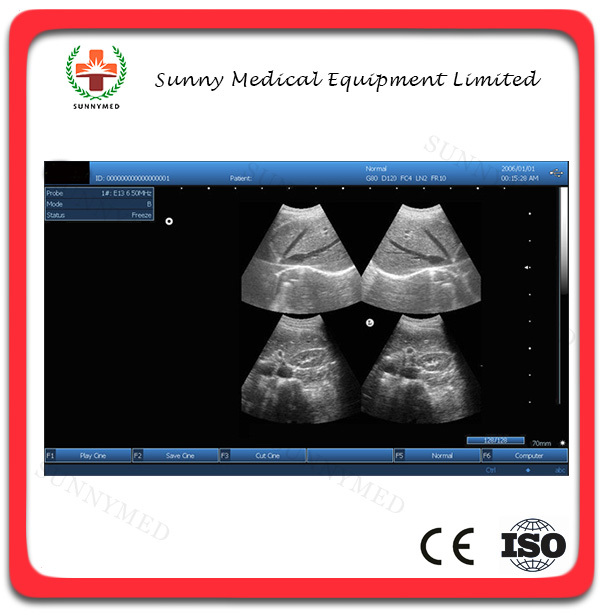

-Operation system: windows XP(Best) or windows 7 -D-Maximum Scanning Depth: max. 250mm -Multi-frequency: 5 segment frequencies -Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 -Image gray scale: 256 level gray scale -Cine Loop::max. 1024 frames -Scann mode: B, 2B, B/M, M, 4B, 9B, ZOOM(Real-time zoom on B mode) -Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision. -Measurement and calculation(human): B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram; M mode: heart rate, time, distance, slope and stenosis; Gynecology measurement: Uterus, cervix, endometrium, L/R ovary; Obstetric: gestation age, fetal weight, AFI; Cardiology: LV, LV function, LVPW, RVAWT; Urology: transition zone volume, bladder volume, RUV, prostate, kidney; Small parts: optic, thyroid, jaw and face. -Measurement and calculation(veterinary): Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD -Image store: by computer hardisk or USB disk -Print: by USB laser/inkjet printers with computer -DICOM3.0, medical digital imaging and communication -3D image function(function): can get rebuilt 3D image by any probe -Dimension: 230mm×200mm×64mm -Weight: with one probe around 1.2kg -Work time by battery(optional): about 3 hours -Probe Connector::2

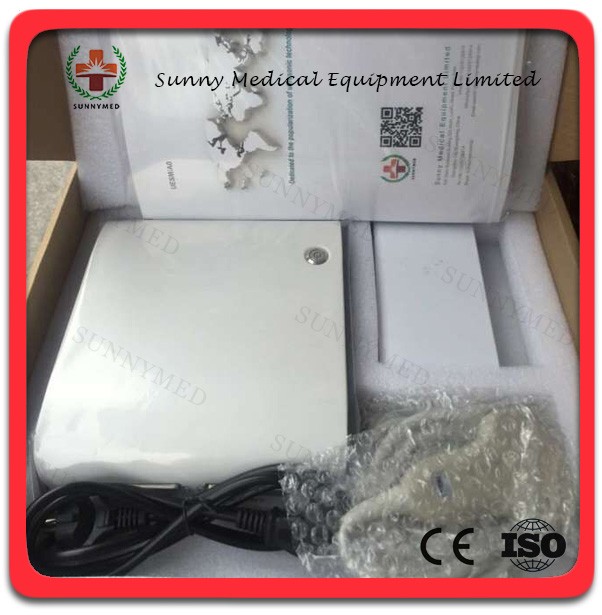

Standard Configuration: Ultrasound Box, USB connect cable, Convex probe(R60, 3.5MHz), Power adapter, CD with ultrasound software, Manual.
