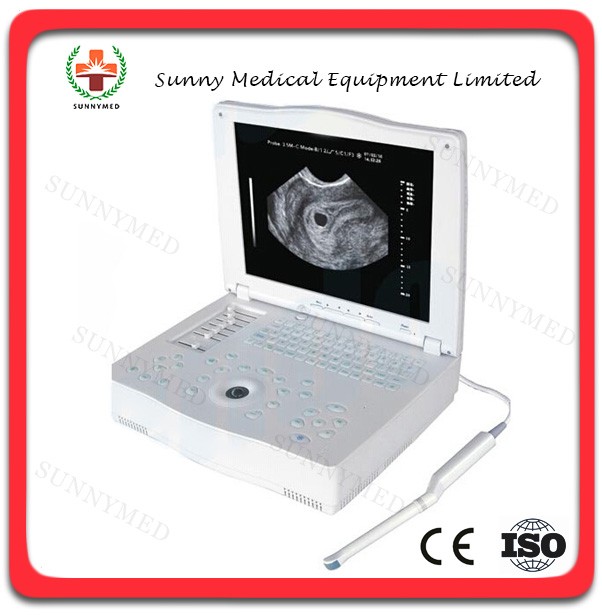

SY-A004 Portable Ultrasound Scanner Pregnancy Laptop Ultrasound

Brand Name: Sunnymed

Model Number: SY-A004

Packaging Details: Carton or wooden case, standard export packing

Delivery Detail: In 10 days after payment received

Port: Guangzhou

Ultrasound Machine, B&W Ultrasound scanner

Imaging Processing:

Part zoom in real time, gray curve control, STC curve, edge enhancement, dynamic range,

frame correlation, 256 gray scale, image reverse function

Pre-processing: multi-segments TGC adjustment, frame correlation, image direction
Post-processing: left/right, up/down, positive/negative
Zoom: magnification (4 steps)
Cine loop: 128 frames

Software Functions:

General measurement: distance, circumference, area, oval, trace, volume, HR, gestational week
Obstetric measurement soft: GS, CRL, BPD, AC, HC, FL, AFI, EDD, and calculating fetus weight,

pregnancy week, expected delivery date, fetal physiological rating according to the previous measurements

Peripheral Ports:

Specification:

Image mode	B, B/B, B+M, M, 4B, 8B
Scanning mode	Convex and linear array
Multi-frequency probe	2.5~8.5 MHz
Image magnification	×1.0, ×1.2, ×1.5, ×2.0.
Electronic focus	Acoustic lens focus, single focus and multiple focus
Max display depth	220mm
Depth enhancement	Yes
Local zoom	Yes
Frame correlation function	Yes
Adjustment total gain and dynamic range	Yes
Gray Scale	256
Display	15” LCD
Gain Control	6-segment STC segmentation control, full gain control
Probe connectors	1 (standard)
Cine Loop	128 frames
Scanning frequency	2.5~8.5 MHz (depends on probes)
Image reverse	Left/right, up/down, positive/negative
Comment	Name, Age, Sex,number of patient recorder, diagnostic date, 24 markers of body location, remarks in full screen
Body marks	18
Gray Scale Conversion	γ rectification
Pseudo Color Function	8 colors
Power supply	AC 110V 60Hz,220V 50Hz
Power consumption	≤100VA
Dimensions	380x285x110mm (LxHxM)
Net weight	approx. 6.8kg
