Description

Technical Specification

Mode:  B,M,2B,B/M,4B,C,PW, Power,DirPower,THI

Gray sacle: 256

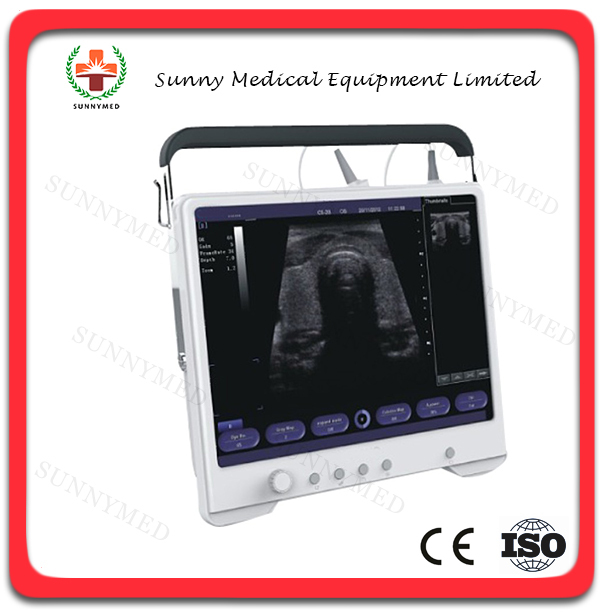

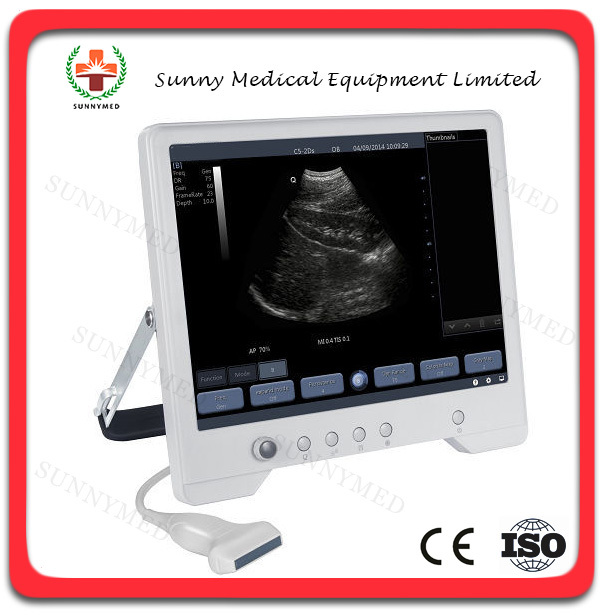

Display:    15”LCD monitor

Touchscreen:   Full Touchscreen

Transducer frequency:      2-11Mhz

Digital technology:     Wide-angle imaging

Panoramic focusing technology

Compatible with high and low speed blood

Rolling M technology

Panoramic imaging

Frequency composite

Space compound

Real-time Dynamic Aperture

Tissue Harmonic Imaging

Scanning depth:  220mm

Imaging Processing

Pre-processing:   Cloud processing technology

Fine blood flow imaging ,high sensitive

8-segment TGC

Gain

Dynamic range

Persisitence

M Soften

Noise suppression

Post-processing:  Image enhancement

Gray-scale Map

Pseudo Color Map

Tissue Specific Imaging

Interface to turn 180°

Left/right reverse

Up/down reverse

Functions

Smart touch-screen design      Supported

Cine-loop:  341 frame cine loop memory

USB ports:  2

Zoom: Pan zoom for the active image

Amplification: 10 times

THI: Tissue Harmonic Imaging

Qopt:  One-key Optimize

Multi language:  Supported

DICOM: DICOM3.0

Print:  Report print for text&graph&image

Measurement & Calculations

B mode:   Distance, angle, area, volume, trace length,

distance ratio, area ratio, histogram

M mode:      Distance, time, slope, Heart Rate

Software packages:     Abdomen,obstetric,Gynecology,Cadiac,Neural and Small Parts

Others

Transducer connector:      3 active transducer connector ports

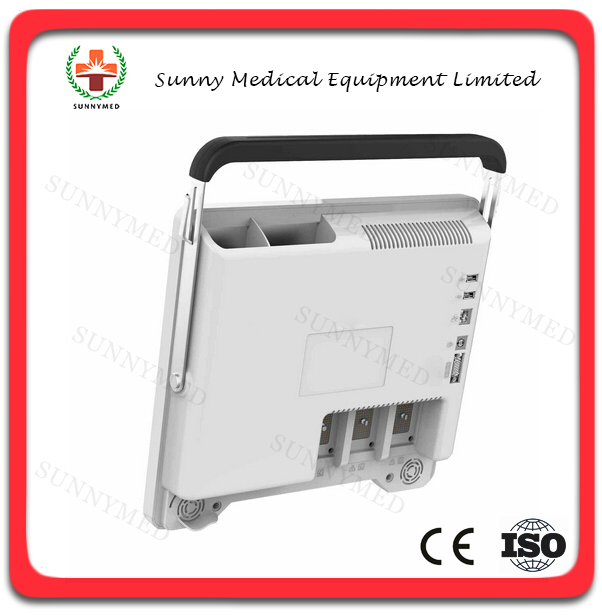

Peripheral ports:  Video,2 USB ports,1 networking port,1 power inlet

Power supply:   100-240V~  50/60Hz  <100VA

Dimensions(main unit):   358mm(W)*366mm(L)*65mm(H)

Packing dimensions :    415mm(W)*435mm(L)*140mm(H)

Net weight:  About 3.0kg

Gross weight:  About 4.5kg

Optional

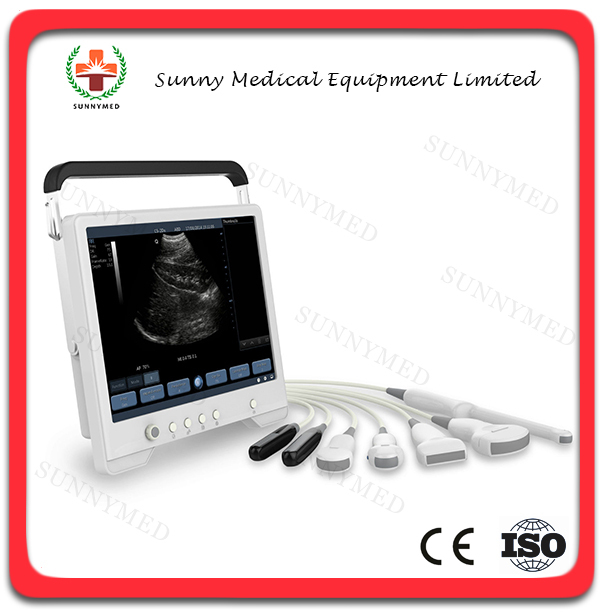

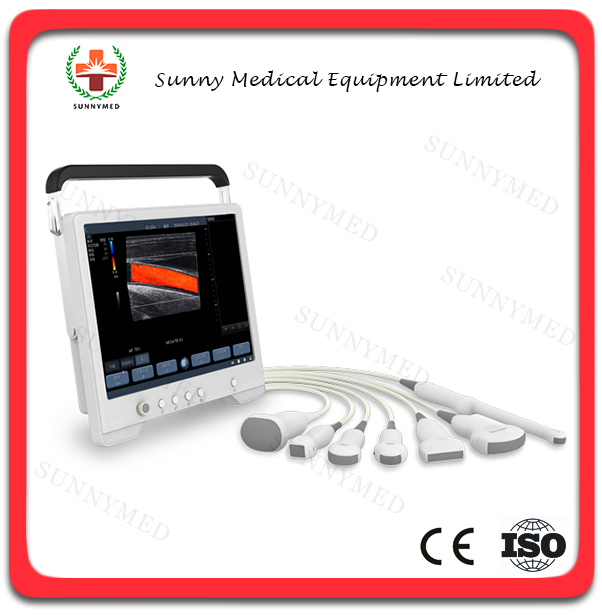

1,Probes:

3.5 MHz convex probe

7.5 MHz linear probe

6.5 MHz transvaginal/transrectal probe

5.0 MHz micro-convex probe

6.5 MHz micro-convex probe

2,Power supply:

Built-in Lithium battery power supply system

3, Type

Black and white

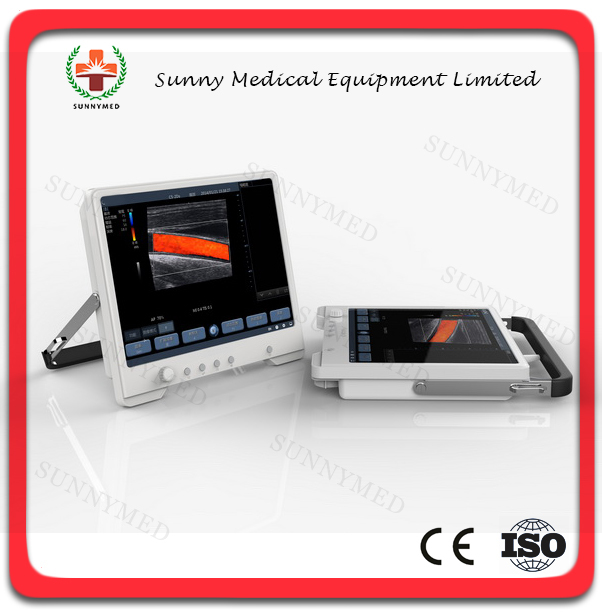

Color Doppler
