Description

Feature:

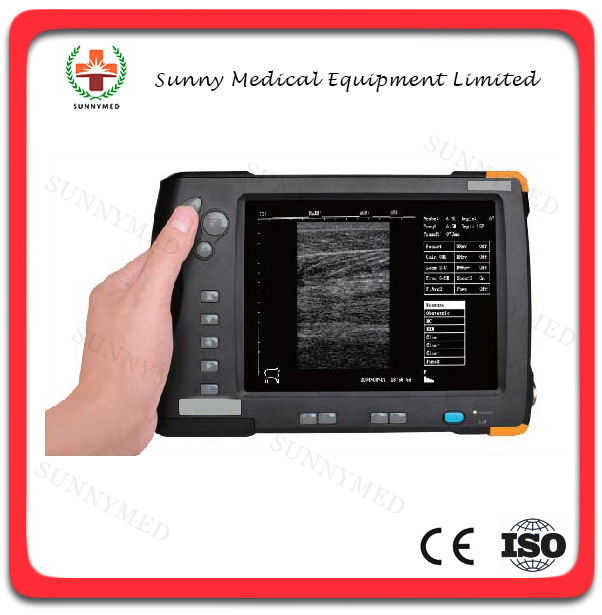

-7 inch TFT screen

-Pretty and very light

-Full digital imaging technology, crystal-clear Image

-Can work with backfat probe

-Low power consumption

-2G Large volume storage image

-Built-in battery

-Solid shell and structure

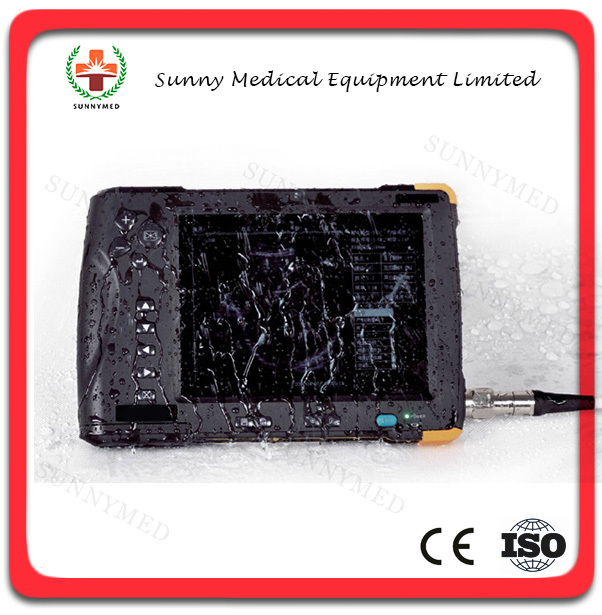

-Waterproof(Optional)

-High Cost-effective

Specifications:

Display size: 7 inch TFT

Scanning manner: Electronic convex array, electronic linear array

Working frequency: 2.0MHz~10MHz

Display mode: B, B+B, B+M, M, 4B

Scanning range: Convex array 60°~150°

Amplification factor:1.0, 1.2, 1.5,2.0

Gain control: 8 segments TGC and overall

gain can be adjusted respectively

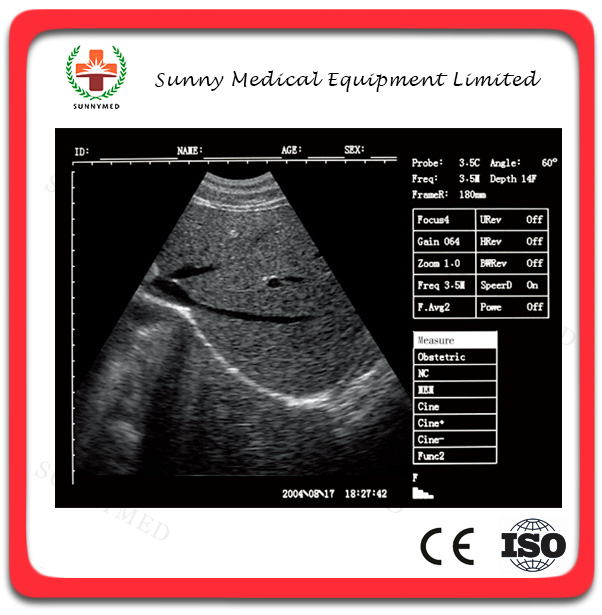

Image processing: 8 γ corrections, frame correlation,

point correlation, line correlation, digital filtering,

digital edge enhancement and pseudo color processing, etc

Image gray-scale: 256 levels

Scanning line number: 512 lines/frame

Frame rate: 30 frames/second

Digital scanning conversion: 512×512×8 bits

Memory capacity: ≥2GB

Conventional measurements: distance, perimeter, area, volume

Obstetric measurement: horses, cattle, sheep,

dogs, cats obstetric measurement

Report function: auto make report

Battery capacity: 3000mAH/7.4V,can work more than 2 hours

Display screen: 7″ TFT

Output interface: USB port, video.

Overall size: 216mm×147mm×27mm

Total weight: 950g(with battery)

Waterproof: IP65(optional)

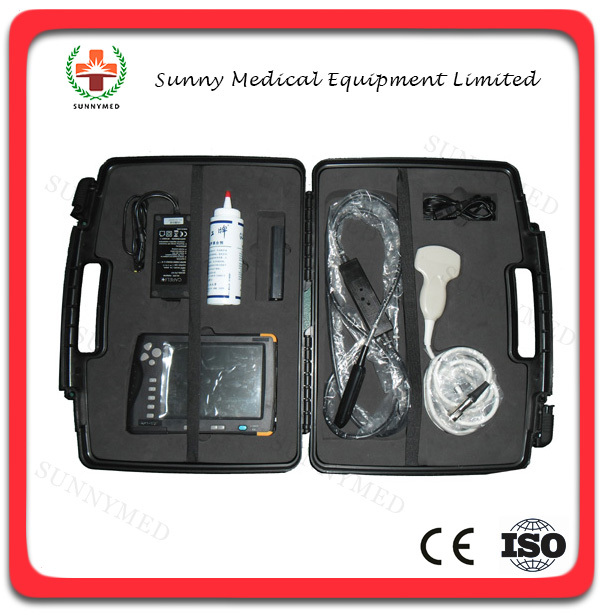

Standard Configuration:

Host, convex probe, built-in battery, power adapter, bag.

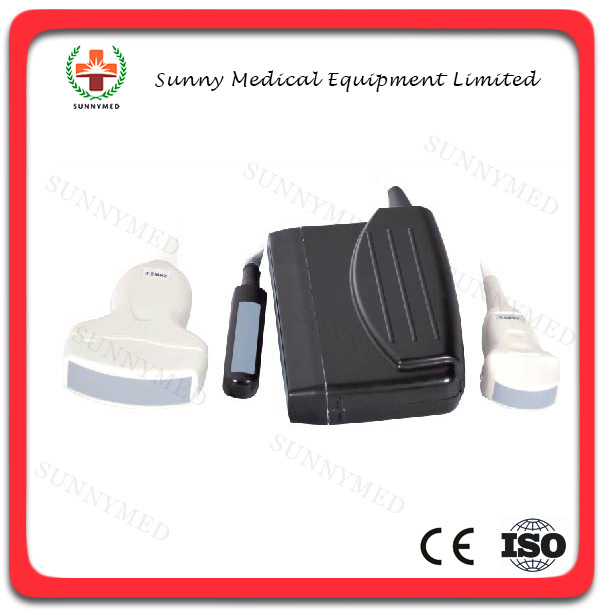

Optional: Linear probe, Micro-convex probe, Rectal probe, Backfat probe.
