Description

Technical Specifications:

Platform: Android, Window

Modes: B, B&M, 2B, 4B, THI, Color, Power, PW

Gray level: 256

Transducer Frequency: 2-11MHz

Digital Technology: Wide-angle imaging

Panoramic focusing technology

Compatible with high and low speed blood

Panoramic imaging

Frequency compounding

Space compounding

Rolling M technology

Real-time Dynamic Aperture

Tissue Harmonic Imaging

Tissue Specific Imaging

Max scanning Depth: 310mm

Imaging Processing

Pre-processing: Cloud processing technology

Fine blood flow imaging, high sensitivity

Gain

Dynamic range

Persistence

M Soften

Noise suppression

Post-processing: Image enhancement

Gray map

Pseudo co lor map

Left/right reverse

Up/down reverse

Function:

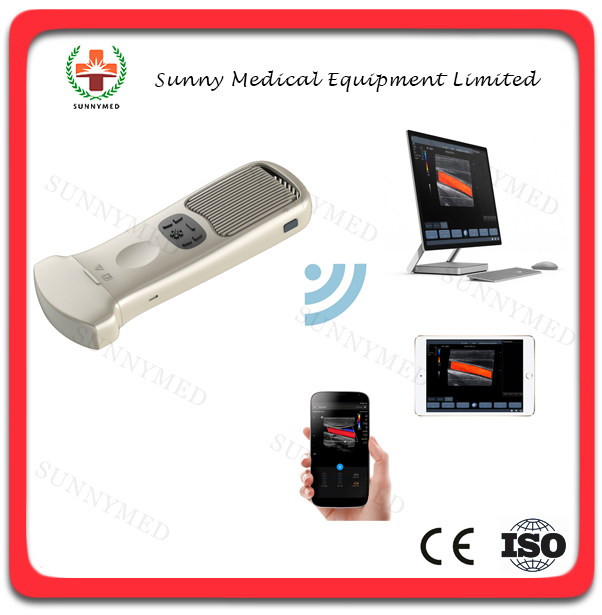

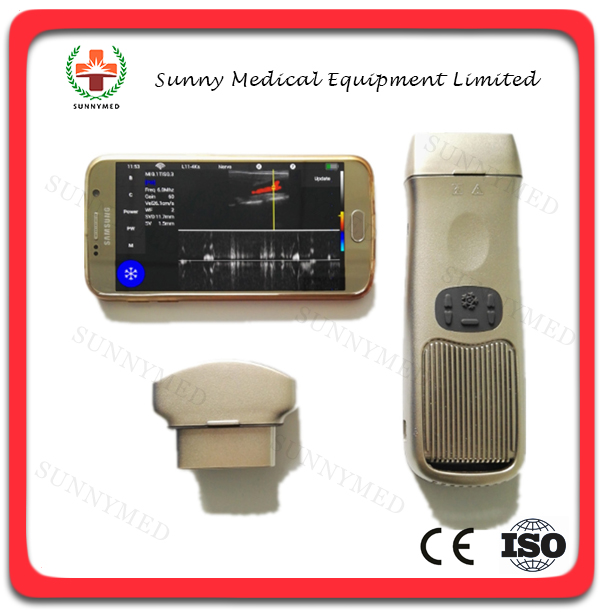

Operation: WiFI connect to any Android or Window System

Cine-loop: Based on the memory of the Android or windows device.

Zoom: Max 10 times

Language: Chinese, English

Measurement and calculation

B mode: Distance, angle, area, volume,

trace length, distance ratio, area ratio, histogram

M mode: Distance, time, slope, heart rate

Color/Power/PW mode: D velocity, D trace, PS/ED

Application package:

Abdomen, Small parts, Vascular, Obstetrics,

Gynecology, Cardiology, Neurology,

Urology, Orthopedics, Anesthesia

Others:

Power supply: 12V 1.5A

Battery lifetime: 6-8 hours

Net weight: About 365g

Waterproof level: Ipx6

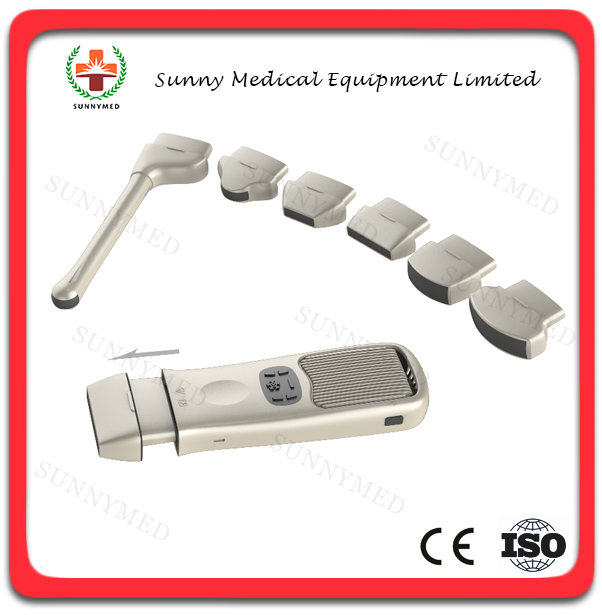

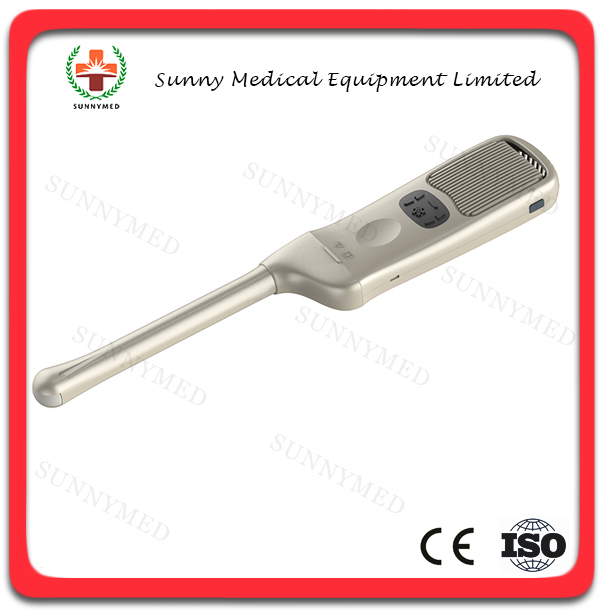

Multiple frequency probes

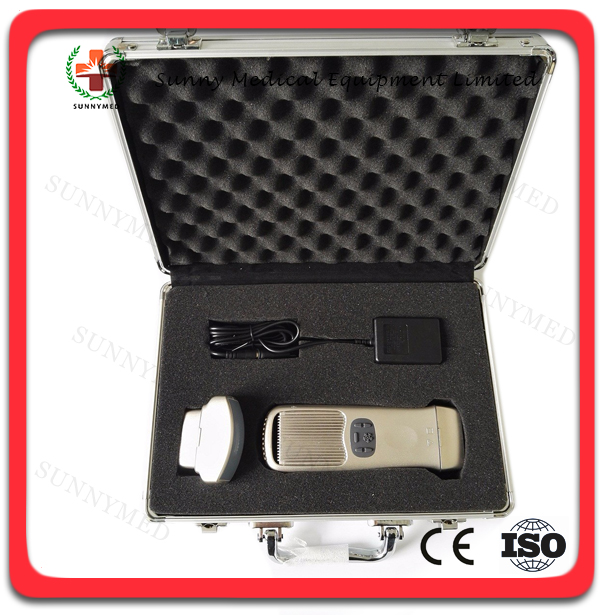

Standard Configurations:

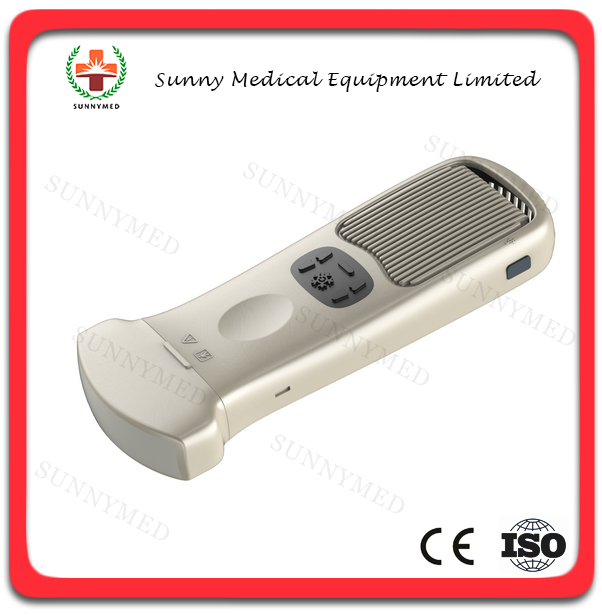

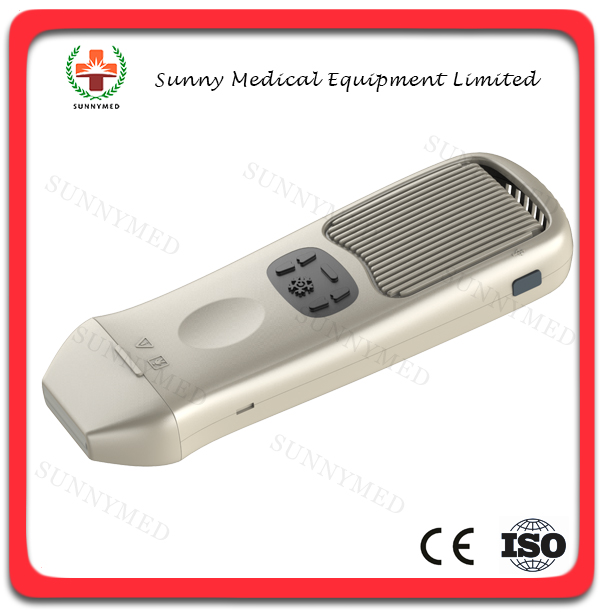

Convex Probe

Power Adapter

Android&Windows applications

Abundant measurement & calculation software packages
