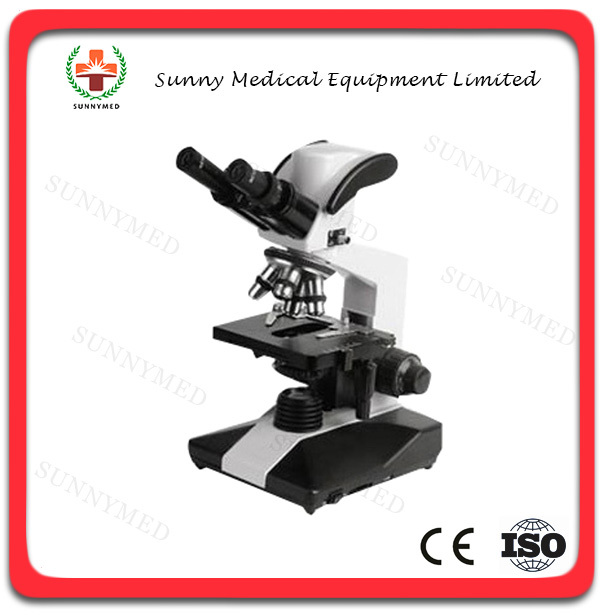

SY-B127 Digital Camera System Portable Electron Microscope

Brand Name: Sunnymed

Model Number: SY-B127

Packaging Details: Carton or wooden case, standard export packing

Delivery Detail: In 10 days after payment received

Port: Guangzhou

MOQ：1set

Laboratory Equipment, Microscope

Specification :

45mm Din Achromatic Objective:4X, 10X, 40X(S),100X(S,Oil)
Wide Field Plane-scope eyeplece: WF10X;WF16X; total magnification:40X-1600X
Articulated Free Binocular Head, interpupillary Distance:55-75mm,30° Inclined; 360° Rotatable
Double Layers Mechanical stage:140*155mm, Moving range X-Y:70X50mm
2-30mm Iris Diaphragm and 32 Filter; ABBE Condenser:N.A.1.25
Coaxial coarse and Fine Focusing Adjustable Mechanism:25mm Precision:0.002mm
Built in Digital Camera System, Resolution:1280(H)*1024(V),1/2”,chip; USB2.0,
with Micro-image Process Software;Nosepiece:Forward Quadreple Nosepiece.
Built in Adujstable Brightness Halogen Lamp 6V/20w(or Incandescent, or fluorescent,or LED)

45mm Din Achromatic Objective:4X, 10X, 40X(S),100X(S,Oil)

Wide Field Plane-scope eyeplece: WF10X;WF16X; total magnification:40X-1600X

Articulated Free Binocular Head, interpupillary Distance:55-75mm,30° Inclined; 360° Rotatable

Double Layers Mechanical stage:140*155mm, Moving range X-Y:70X50mm

2-30mm Iris Diaphragm and 32 Filter; ABBE Condenser:N.A.1.25

Coaxial coarse and Fine Focusing Adjustable Mechanism:25mm Precision:0.002mm

Built in Digital Camera System, Resolution:1280(H)*1024(V),1/2”,chip; USB2.0,

with Micro-image Process Software;Nosepiece:Forward Quadreple Nosepiece.

Built in Adujstable Brightness Halogen Lamp 6V/20w(or Incandescent, or fluorescent,or LED)

Net weight per set	7KGS	CTN Mea.	38X34X50cm
N.W. per CTN		G.W.	12KGS
Lead Time	20	QTY per CTN	1PCS
Built in Digital Camera System, Resolution:2048(H)*1536(V),1/2”,chip; USB2.0,
