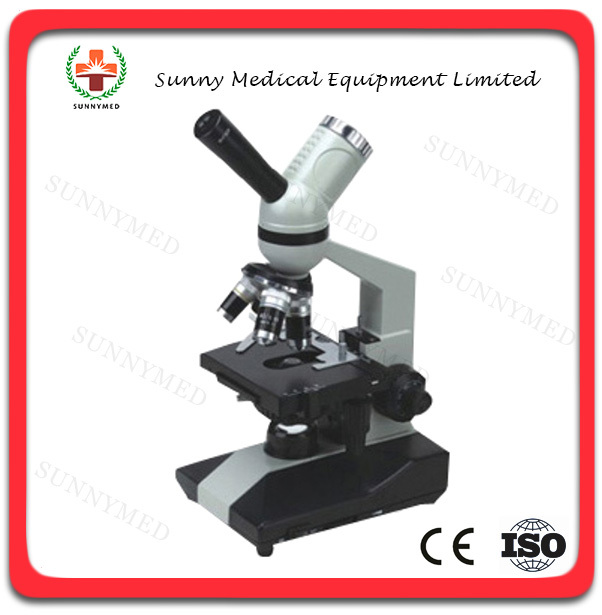

SY-B128 PC System Portable Monocular Digital Microscope
Brand Name: Sunnymed
Model Number: SY-B128
Packaging Details: Carton or wooden case, standard export packing
Delivery Detail: In 10 days after payment received
Port: Guangzhou
MOQ：1set
Description
Specification :
| 5mm Din Achromatic Objective:10X,40X(S), 100X(S,Oil); | |||||
| Wide Field Plane-Scope Eyepiece:WF10X: Total magnification:40-1000X; | |||||
| Monocular Digital Head(A high quality color digital camera in it ),45° inclined, 360° rotatable; | |||||
| Resolution:1280(H)X1024(V) (1.30MP); | |||||
| Capturing micro-images and showing live video on PC Screen;Saving still image as BMPm JPG File; | |||||
| Software for previewing, measuring,comparing,counting,saving and deleting; | |||||
| PC system required:Hardware:USB 2.0connecting socket;CPU:intel P4; EMS momory:256M; | |||||
| Software:win2000;or winxp;vista,directx9.0 | |||||
| 110X120mmplain stage with single lens condenser N.A.0.65 and paired clips;five -stop dial diaphragm; | |||||
| Coaxial coarseand fine focusing knobs, focusing range:14mm; | |||||
| Packing Info. | |||
| Net weight per set | 2.2KGS | CTN Mea. | 54X39X40cm |
| N.W. per CTN | G.W. | 11KGS | |
| Lead Time | 10–20 | QTY per CTN | 4 |
| Built in Digital Camera System, Resolution:2048(H)*1536(V),1/2”,chip; USB2.0, | |||
