Description

Features:

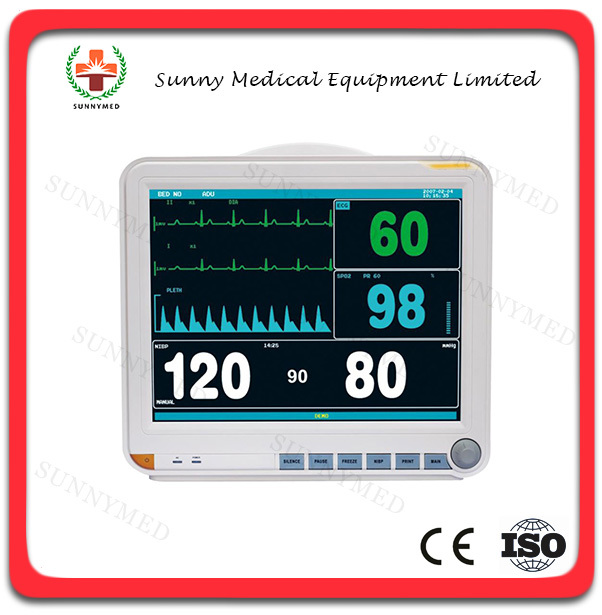

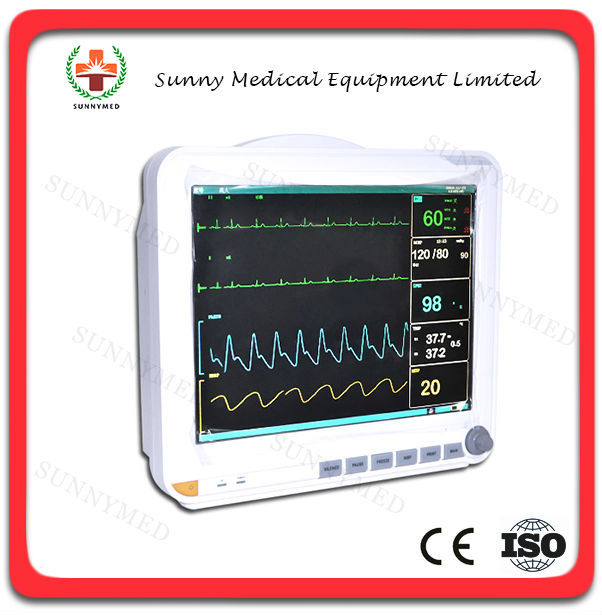

•  15” screen with true color, wide viewing angle, high brightness LCD display.
•  HR/PR, NIBP, RR, ECG, SpO2, TEMP
•  Simple and friendly operating display interface.
•  Rechargeable lithium battery provides convenience for patients’ moving.
•  Playback and browse function for long term waveform and monitor data record.
•  Optional printing output function, alarm triggers printing.
•  Auto double alarm with audible and visible signals
•  Anti-defibrillation, anti-interference from high frequency electric knife
•  A full-synchronistic lead multi-channel ECG display…
•  This medical equipment can be used in ICU, CCU and operation room.
•  Suitable for adult,pediatrics and neonate patients.

Specification:

ECG

Lead configuration

Standard 3-lead or 5-lead

3-leadRA,LA,LL,Lead method:I,II,III

5-leadRA,LA,LL,RL,V,Lead method:I,II,III,aVR,aVL,aVF,V

Increase

´250,´500,´1000,´2000

HR

Range

Adult 15 ~ 300bpm (beat/minute)

Neonatal baby/children 15 ~ 350 bpm(beat/minute)

Precision±1% or ±1bpm,the larger prevails

Resolution 1 bpm(beat/minute)

Sensitivity

> 200 uV (Peak-to-peak value)

Input Impedance

> 5 (megohm)

Bandwidth

Diagnostic mode0.05~130Hz

Monitoring Mode 0.5~40Hz

Operation mode1~20Hz

Common Mode rejection Ratio

Diagnostic mode> 90 dB

Monitoring Mode > 100 dB

Operation mode> 100 dB

Pole Polarization Vvoltage Range

±300mV

Pacing Pulse Test

Test pacing pulse in accordance with the following conditions:

Amplitude:±2 mV ~ ±700mV

Width: 0.1ms ~ 2ms

Risetime: 10us~100µs

Pacing pulse inhibition

When pacing analysis switch is on, pacing pulse in accordance with the following

conditions are restrained, but affection against HR calculation.

Amplitude:±2 mV ~ ±700mV

Width: 0.1ms ~ 2ms

Risetime: 10us ~ 100µs

Baseline Recovering Time

After defibrillation< 3 seconds

Signal Range

±8 mV (Peak-to-peak value)

Calibrating Signal

1mV(Peak-to-peak value),precision±5%

ST Segment Measuring Volume

Measuring range: -2.0mV ~ +2.0mV

Measuring precision: Ranging -0.8 mV~+0.8mV, measuring error is ±0.02mV or ±10%,.

The larger prevails.
