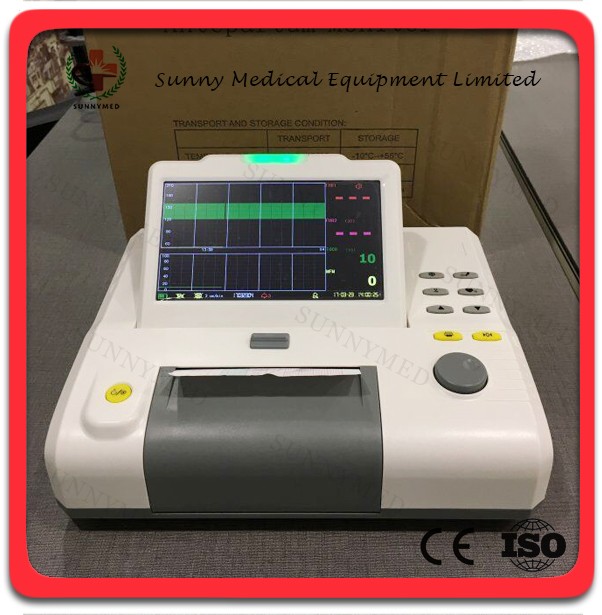

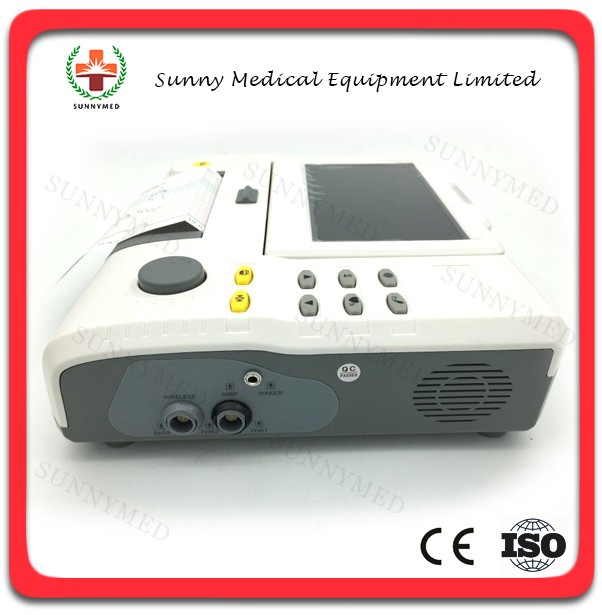

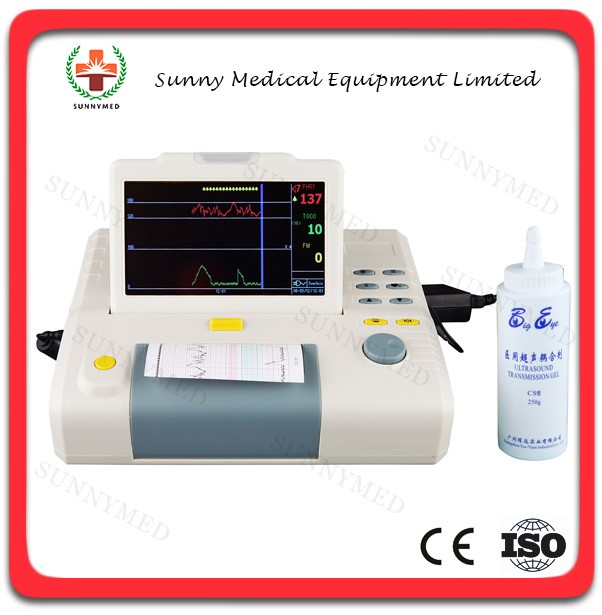

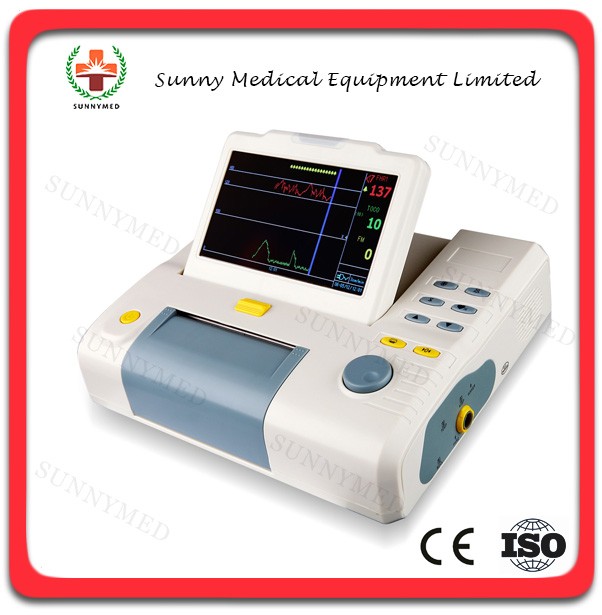

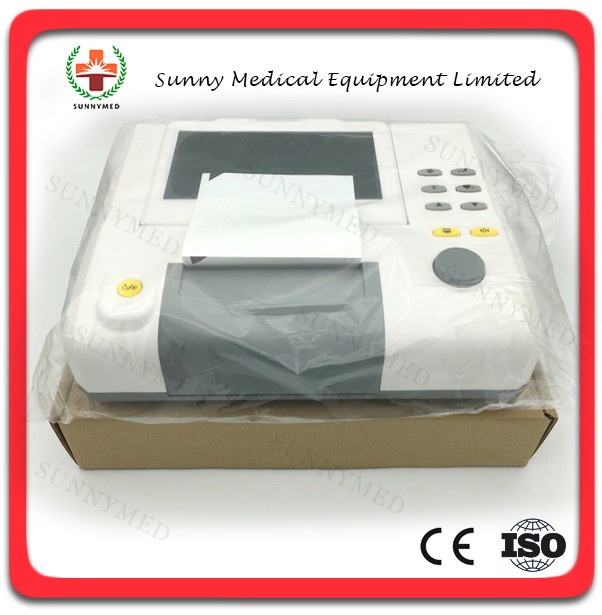

Description

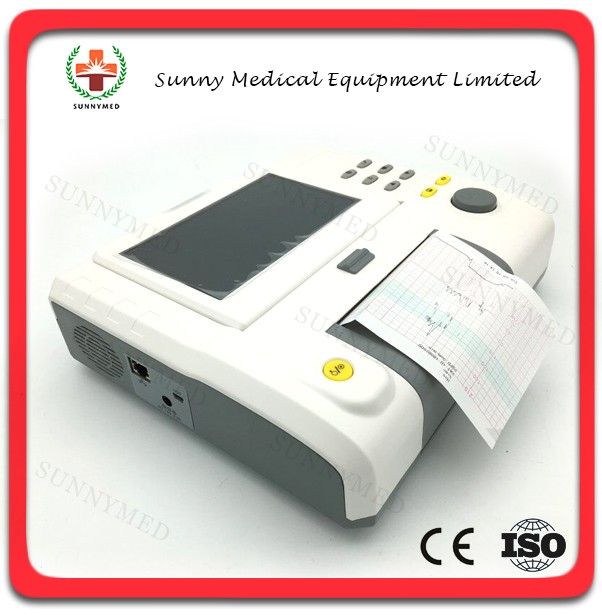

Compact and lightweight design

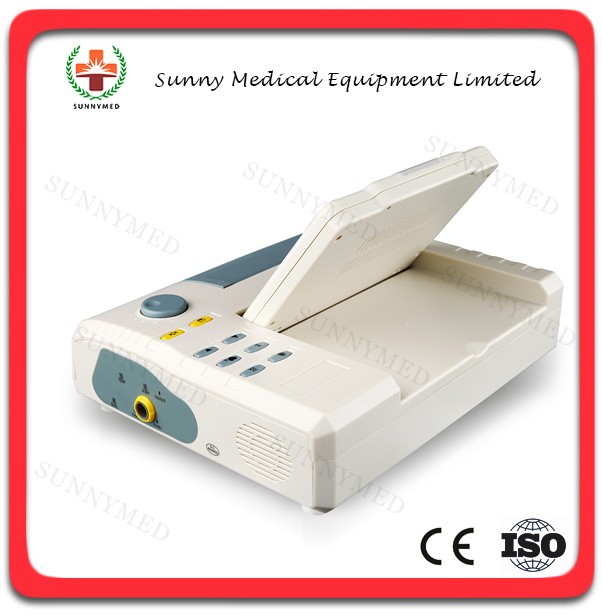

7″ color TFT screen, folding 90 degrees

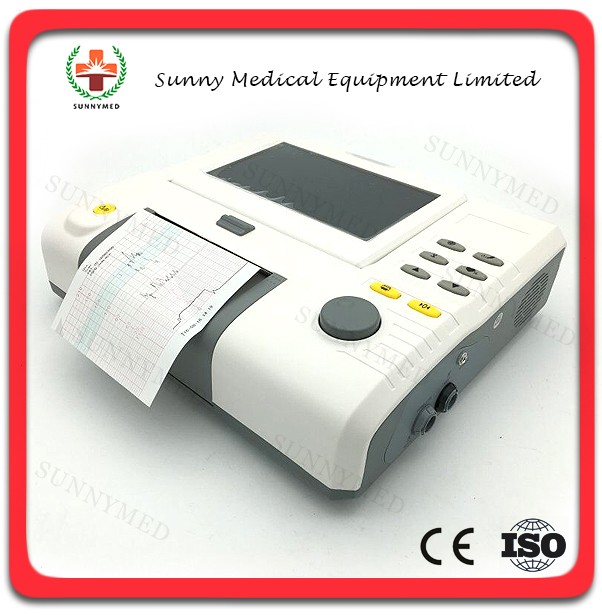

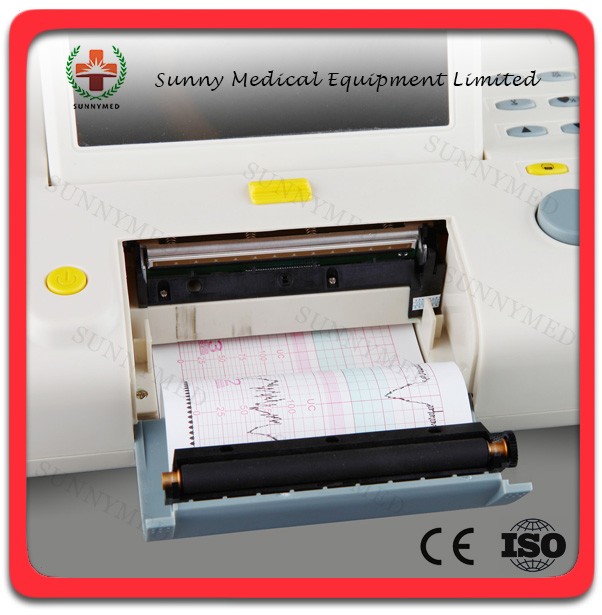

Built-in high dot matrix thermal printer with long life

A standard patient event marker and a clinical event marking button to mark clinical events separately.

Auto fetal movement are available.

Multi-crystals, wide beam forming, high sensitivity ultrasound transducer, low ultrasound power

AC or Li-ion battery

More than 12 hours data storage, which can be recalled and reprinted.

Technical Specifications:

Fetal Heart Rate Multi-crystal,pulsed doppler,high sensitive

Transducer Strengh <5mW/cm2

Working frequency 1.0MHz

Signal processing special DSP system and mode recognization

Measurement range 50~210 bpm

Alarm Range: High: 160 170 180 190 bpm

Low : 90 100 110 120 bpm

The largest audio output power 1.5W

TOCO

Measurement range 0~100units

Battery working time 2 hours(no printer working)

Speaker 1W

Power Supply AC 220V±20%,50Hz or 8.4V Li-battery

Power consumption <20W

Working Environment Temperature: 10~40 ℃, RH: 10~80%

Transducer Acoustic Output Under the requirements laid down in IEC 1157, 1992,

the peak negative acoustic pressure does not exceed 1Mpa. The output beam intensity

does not exceed 20mW/cm2 and the spatial-peak temporal-ave rage intensity does not exceed 100mW/cm2

Dimension 295W×240D×73H×mm

Net weight 1.75kg

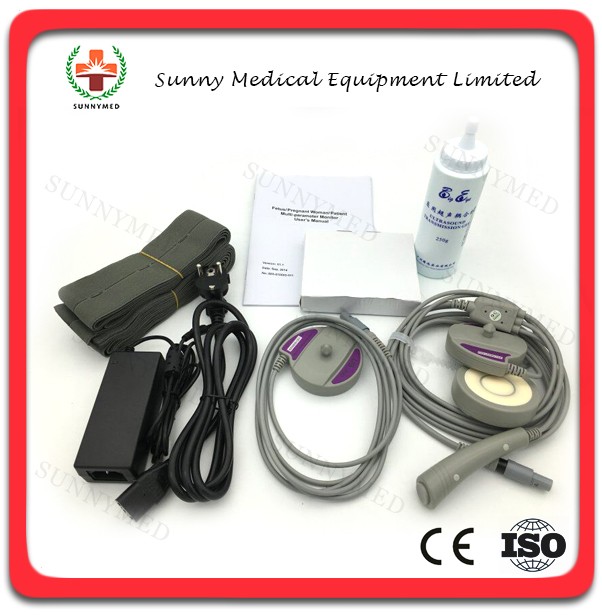

Standard: FHR, TOCO, FM

Optional: Twins,FAS(Fetal acoustic simulator)
