Description

Introduction:

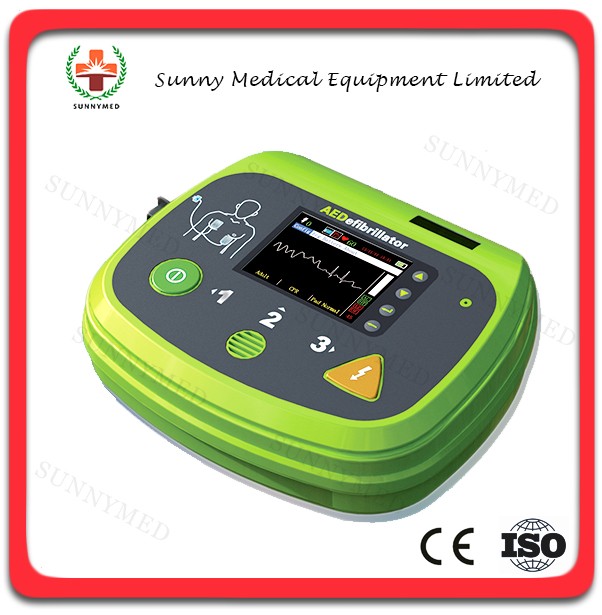

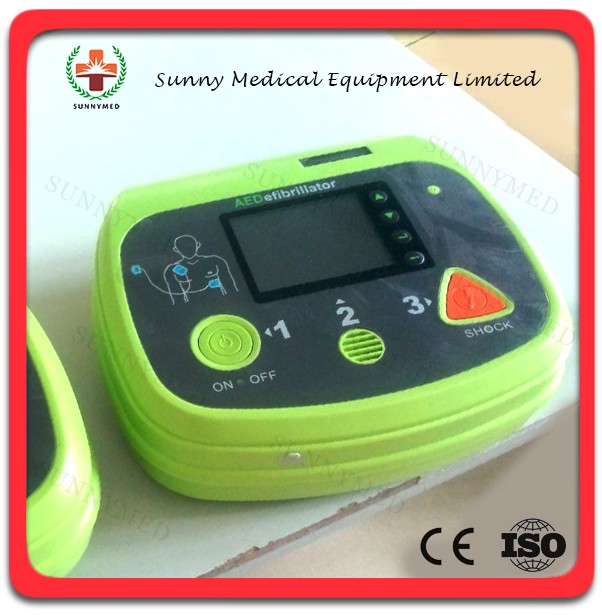

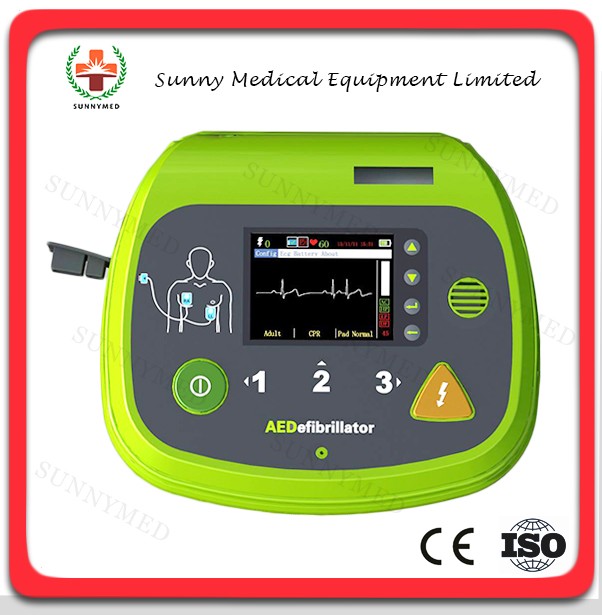

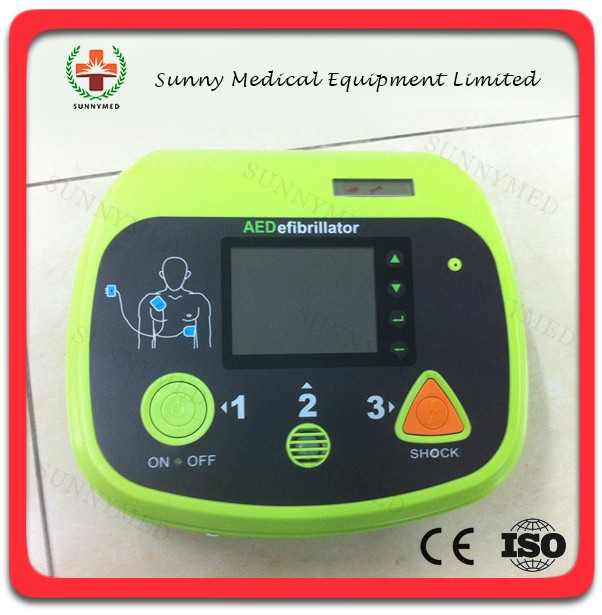

SY-C025P is a portable model, which can be equipped at home, in public places, or in the hospitals. It’s easy and

convenient to use when give first-aid to patient. Meanwhile, it has the function of automatic analyzing patient’s

ECG data, and then takes corresponding defibrillation energy level according to patient’s current situation,

which has greatly improved success rate, and maximum reduced damage to patient’s heart.

Features:

1. Three-step defibrillation process

2. Two-button operation

3. Extensive voice and visual prompts for the operator

4. Biphasic energy output

5. Lock-out protection to prevent inadvertent defibrillation

6. Continuous event recording for reporting each use to a printer or computer

7. Weekly self-test to ensure readiness

8. Color LCD screen

9. Adult and Pediatric Defibrillation

10. CPR coaching(Optional)

Specification:

Portable Defibrillator

Output: Biphasic Truncated exponential

Energy sequence: 150J, 200J(Adult); 50J, 100J(Pediatric)

Charge Time: 8 sec. to 150J; 4 sec to 50J/ 100J; 10 sec to 200J(New battery)

Analysis time: 9 sec

Audible prompts: 20 audible prompts

Visual Prompts: LED, automatic self-test

Controls: two bultons-On/Off, shock

Output energy accuracy: more or less 15% into any impedance from 25 to 175 Ω

Output disabled when the patient impedance is outside: 20 Ω to 200 Ω

Physical:

Dimensions: 220*170*70mm

Weight: 1.5kg

Operating Humidity: Relative humidity between 30% and 95% (non-condensing)

Storage temperature (with battery): -20 ℃  to 55 ℃

Storage humidity (without battery): up to 93% (non-condensing)
