Features
| 1 | Meet the ITS, NIOSH, ERS and DIAGNOSIS standard |
| 2 | Multi-language display and measurement report |

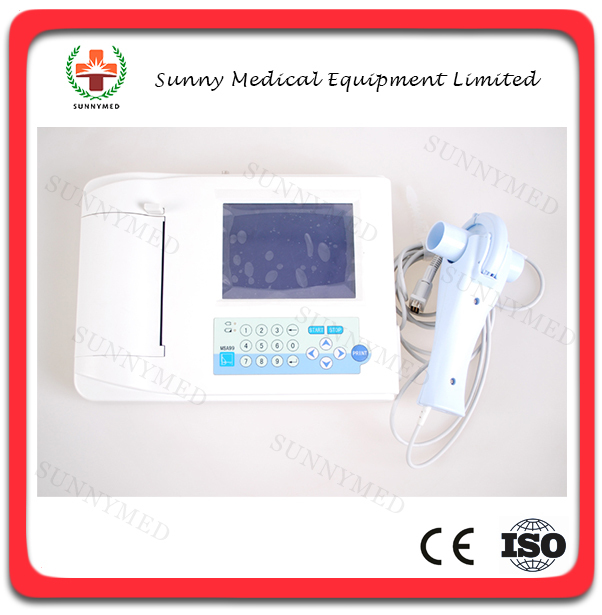

| 3 | With precision flow sensor, easy to clean and sterilize, long-term durability |
| 4 | 5.7″ 320*240 dots LCD, memory capacity 300 measurement records |

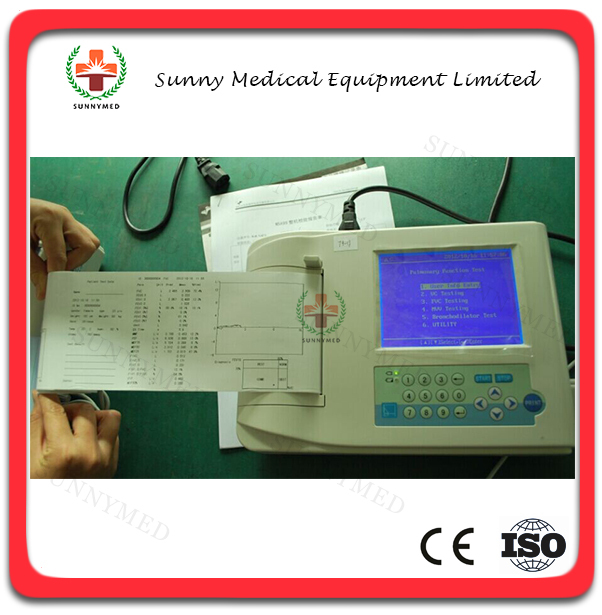

| 5 | Built-in precise 110mm thermal printer |
| 6 | Small size, light weight and easy to carry |
| 7 | It can be connected to PC station through USB port, performing a pulmonary function test directly with PC station, also thousands of measurement records can be stored |

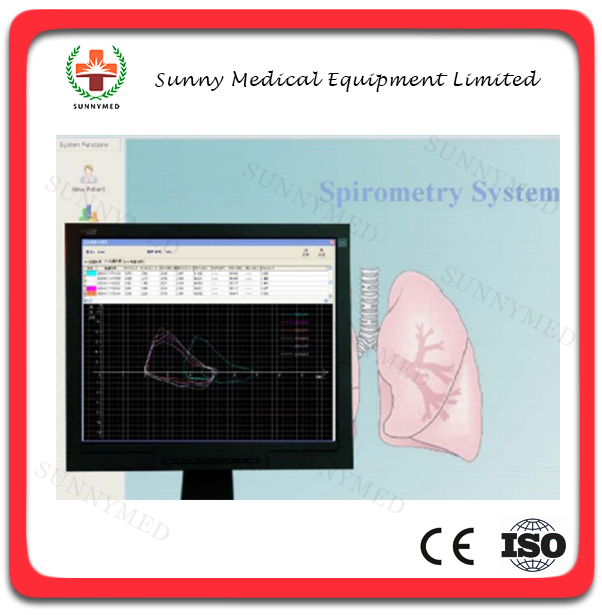

| 8 | PC workstation supports the measurement and post-bronchodilator test |
| 9 | PC workstation supports mulit-language display and report printing |
| 10 | Support prediction equation for different races, includingITS, ECGS, KNUDSON, MORRIS/DOLGAR prediction equations |
Parameters
| VC | Vital Capacity |
| ERV | Expiratory Reserve Volume |
| IRV | Inspiratory Reserve Volume |
| TV | Tidal Volume |
| IC | Inspiratory Capacity |
| FVC | Forced Vital Capacity |
| FEV0.5 | Forced Expiratory Volume in 0.5s |
| FEV1.0 | Forced Expiratory Volume in 1s |
| FEV3.0 | Forced Expiratory Volume in 3s |
| FEV1.0%G | Forced Expiratory Volume in 1s/Forced Vital Capacity |
| FEV1.0%T | Forced Expiratory Volume in 1s/Vital Capacity |
| FEV3.0%G | Forced Expiratory Volume in 3s/Forced Vital Capacity |
| FEV3.0%T | Forced Expiratory Volume in 3s/Vital Capacity |
| Vext | Volume of Expiration |
| Ex Time | Expiratory Time |
| MMF | The maximum mid-expirator flow, same as MMEF |
| PEF | Peak Expiratory Flow |
| MEF75 | Maximum Expiratory Flow when 75% FVC remains, same as FEF25 |
| MEF50 | Maximum Expiratory Flow when 50% FVC remains, same as FEF50 |
| MEF25 | Maximum Expiratory Flow when 25% FVC remains, same as FEF75 |
| FIVC | Forced Inspired Vital Capacity |
| FIV0.5 | 0.5s Forced Inspired Volume |
| FIV1.0 | 1s Forced Insipred Volume |
| FIV1.0/FVC | Forced Inspired Volume in 1s/Forced Vital Capacity |
| FIV1.0/FIVC | Forced Inspired Volume in 1s/Forced Inspired Vital Capacity |
| PIF | Peak Inspiratory Flow |
| MIF50% | Inspiratory Flow in 50% Inspired Capacity |
| MVV | Maximum Voluntary Ventilation |
| RR | Respiratory rate per minute |
| TV | Tidal Volume in MVV measurement |
