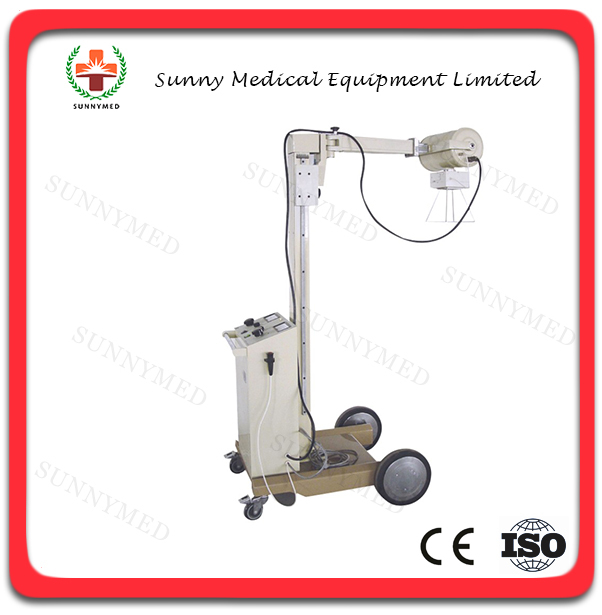

SY-D007 Medical Mobile x ray unit
Brand Name: Sunnymed
Model Number: SY-D007
Packaging Details: Carton or wooden case, standard export packing
Delivery Detail: In 10 days after payment received
Port: Guangzhou
MOQ：1 set
Description
| GENERAL |
| Can be used in ward and emergency treatment room. |
| .X-ray generator is combined |
| Single focus, bridge rectification. |
| .It is precise, safe, reliable and flexible |
| A wireless remote control device (control range≥5 m) is used |
| MAIN TECHNICAL PARAMETER | |||||
| X-ray generator | Stationary anode, single focus, and bridge silicon rectification,
The X-ray generator is an oil-immersed self-cooled unit. |
||||
| Max rated capability | Current | 15mA | 30mA | 60mA | 100mA |
| Voltage | 90kvp | 90kvp | 90kvp | 80kvp | |
| Time | 6.3s | 6.3s | 4.0s | 3.2s | |
| Power supply | Voltage | 180~240V | |||
| Frequency | 50Hz | ||||
| Power | not lower than 7kVA | ||||
| Resistance | not larger than 1Ω | ||||
| Voltage adjustment range of x-ray tube | 50~90kVp | ||||
| Range of the timer | 0.08~6.3 s | ||||
| Distance between the focus to the ground | 700~1780 mm | ||||
| X-ray tube focus transverse rotation | ±60° | ||||
| Specification of X-ray tube | XD4 2.9/100 Stationary anode, single focus | ||||
| Transport dimension,Weight | 123×90×204(cm), NET:190kg/ GROSS:250kg | ||||
