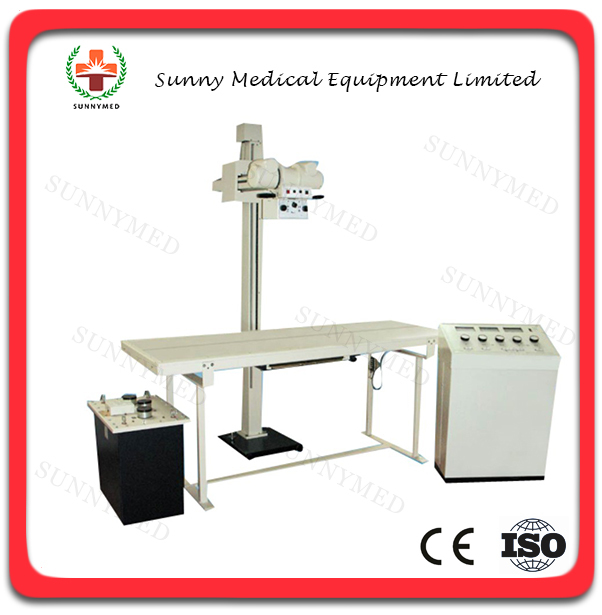

SY-D009 125mA medical professional X-ray machine price

Brand Name: Sunnymed

Model Number: SY-D009

Packaging Details: Carton or wooden case, standard export packing

Delivery Detail: In 10 days after payment received

Port: Guangzhou

MOQ：1 set

Medical x-ray machine

USE

General radiography,Filter-ray device radiography

Control,HT generator unit,Ht cable,X-ray tube unit,Diagnostic table,Collimator

1, Single table and single tube

2, Design according to the electric mechanism of middle-size machine ,The function is reasonable

3, High-tension system is of split structure, with high-voltage generator of

full-wave rectification and stable operation

4, Supply voltage (V), photograph kilovolt (kv) and stepless adjust able

5, Equipped with the manostat for filament of X-ray tube

and the spacecharge compensator as to ensure the stable and accurate

output

6, Equipped with the capacity limitation and portection circuit and KV mA S interlock

limitation and protection

7, The timer circuit grade according to R10 priority coefficient and an exact time control

8, The radiograph flat table has a vibrating ray-filter

9,The pillar hast has only the bottom track only, with easy installation

MIN TECHNICAL INDEXES

Supply power	Voltage		single phase 220V/ 380V±10%
	Frequency		50Hz±0.5Hz
	Capacity		10KVA
	Intemal resistance		380v:2Ω,220V: 0.6Ω(2Ωat80v; 06Ωat220V)
Max DC output voltage			90KV
Max DC output current			125mA
Radiograph	Voltage		50-90KV
	current		Small focus 15mA , big focus30mA 60mA 100mA 125mA
	spot film		100mA(fixed)
	time		0.04-6.3s,24grades together
High-voltage generator	Capacity		7KVA
X-Ray tube	Model		XD4-2.9/100
	Focus		Small focus 1.8mm big focus4.3mm
Radiograph table	Bed face (L×W×H)		1960×660mm×700mm
	Bucky		Grid density N28
			Convergence distance fo 100cm
			Grid ratio
Max size of cassette	356mm×432mm(14″×17″)
Pollar of X-ray source unit	Moving in length (along The bottom table )			over1350mm
	moving un breath			over 360mm
	moving up and down			720~1800mm
MAX VOLUME OF RADIOGRAPH
Focus of X-Ray tube	Radiograph mA	Max Radiograph KV			Max exposure time allow
Small focus	15mA	90KV			6.3S
Large focus	30mA	90KV			6.3S
	60mA	90KV			6.3S
	100mA	85KV			2.5S
	125mA	82 KV			1.0S
