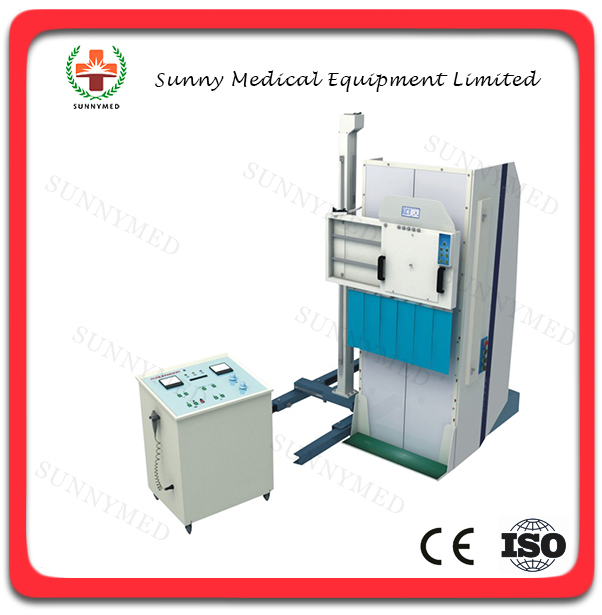

SY-D012 200mA Medical high quality x-ray model hospital x ray
Brand Name: Sunnymed
Model Number: SY-D012
Packaging Details: Carton or wooden case, standard export packing
Delivery Detail: In 10 days after payment received
Port: Guangzhou
MOQ：1 set
Description
Features:
Single diagnostic table and single X-ray tube with rotated anode
KV,mA and a interlocking protection and radiograph time-limited protection are provided
Filament for stabilizing voltage, space charge compensation and anode starting-up protection device are provided
Voltage of power supply and KV with digital display can be adjusted constantly and respectively
It becomes convenient to install without above-ground railway and be operated easilly
Electromagnetism are provided for pillar lengthways, crosswise, and sleeve moving up and down
Frame:
Control Table, Diagnostic Table / Radiograph Device for Stomach and Intestine,
High Voltage Transformer Assembly, High Voltage Cable, X-ray Tube Assembly
Technology Parameters
| Description | Technology Parameters | |
| Power Supply | Voltage | A.C.380V / 220V (±10%) |
| Frequency | 50Hz ± 1Hz | |
| Capacity | 20KVA | |
| Power Supply Resistance | A.C.380V≤1.0Ω;
A.C.220V≤0.3Ω |
|
| Maximum
tube voltage |
120KV | |
| Maximum
tube currency |
200mA | |
| Fluoroscopy | Tube voltage | 40~110KV |
| Tube currency | 0.5~5mA | |
| Radiograph | Tube voltage | 40~120KV |
| Tube currency | Small Focus 50mA,100mA;
Big Focus100,150,200mA |
|
| Spot film | 100mA (Small Focus) | |
| Time | 0.04~6.3s Divided
into 23 grades from 0.04~6.3s |
|
| High Voltage
Generator |
Capacity | 20KVA |
| X-ray Tube | Model | XD 51—20,40 / 125 |
| Focus | Small Focus 1×1mm2
Big Focus 2×2mm2 |
|
| Rotated Speed of anode | 2800r / min | |
| Diagnostic Table | Scope of rotation | 90°~ 0°~-5° |
| Mobile beam filtration device | Grid density N=28 | |
| Focus Distance f o>1000mm | ||
| Grid Ratio r=8 | ||
| Distance from surface to film | ≤60mm | |
| Stomach & Intestine
Radiograph Device |
Spot film device specification
(Stomach & Intestine Radiograph) |
127×178mm( 5× 7)
binary picture |
| 203×254mm( 8×10)
binary picture |
||
| 254×305mm(10×12)
binary picture |
||
| 280×356mm(11×14)
quartering picture |
||
| Moving lengthways
(along ground railway) |
1500mm | |
| Moving crosswise (left & right) | 740mm | |
| Moving up and down | 700mm ~ 1900mm | |
| Way of locking | Electromagnetism locking | |
| Beam Limited Device | Manually single
automatic multi-optional |
|
