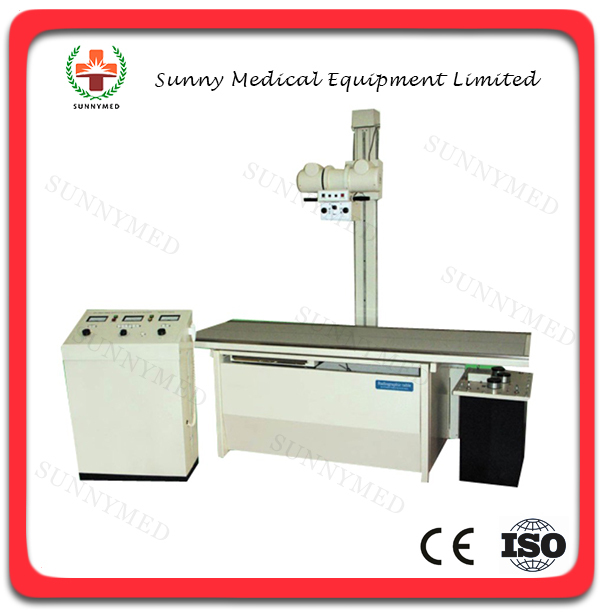

SY-D014 300mA radiography x ray equipment

Brand Name: Sunnymed

Model Number: SY-D014

Packaging Details: Carton or wooden case, standard export packing

Delivery Detail: In 10 days after payment received

Port: Guangzhou

MOQ：1 set

Medical x-ray machine

USE

General radiography,Filter-ray-filter radiograph

Unit Configuration

Control, HT generator unit,Ht cable,X-ray tube unit,Radiographic table-X-ray source column ,Collimator

MAIN CHARACTERISTICS

1, Single-table/single-tube

2, Rotary anode X-ray tube unit and tangential annular tube head

3, Single-phase full wave rectification high-voltage generator

4, Power voltage(v) radiograph kilovolt (KV).step-less control electric mechanism

5, Filament stabilizer for X-ray tube unit and space charge compel mentor

6, Radiograph volume KV ,mA and S. grading and interlock protection

7, Adopt digital circuit timer. Grading according to R10 priority coefficient,(for more accurately controlling time)

8, HT primary, the zero controlled circuit of silicon-controlled rectifier of heavy power

9, Radiographic table can move in length an breadth

10,The radiographic table. Column and vibrating grid are in a whole without ceiling and floorh rails bottom

MIN TECHNICAL INDEXES

ITEM	CONTENTS	INDEX
Demand of power supply	Capacity	Two-phase 30KVA
	Voltage,Frequency	380V/220V ±10%50HZ ±0.5Hz
	Intemal resistance	2Ω(380V) 0.6 Ω(220V)
power supply	Adjustable range	380±10% at220V being adjustable continuously
Radiograph	Voltage	50-90KV 50-90KV being adjustable continuously
	current	Small focus:50mA100mA,Big focus:50mA 100mA 200mA 300mA
	time	0.04~6.35s 23grades together grading a according to R10 coefficient
High-voltage generator	Capacity	20KVA(instantaneous)
	Max DC output voltage	125KV
	Max DC output current	300mA
X-Ray tube	Model	XD51.20-40/125
X-Ray tube	Focus	Small focus 1×1mm big focus2×2mm
Radiographic table	Length×width×height of bed surface	2000mm×665mm×700mm
	Moving range of bed surface	640mm in Length,200mmin breadth
	Ray-filter of table	Travel in length ≥500mm
		Grid density N=28
		Convergence distance f.=100cm
		Grid ratio r=8
Column of X-ray tube unit	Moving Longitudinally along Radiographic table	1000mm or 1800mm
	Distance to friend as moving up and down (along column)	650~1800mm
	Rotary around the center of cross arm	±180°
	Rotary around the shaft line of X-ray annular tubes	-10°~60°~ +120°
Max size of cassette		356mm×432mm (14″×17″)
