Description

Feature:

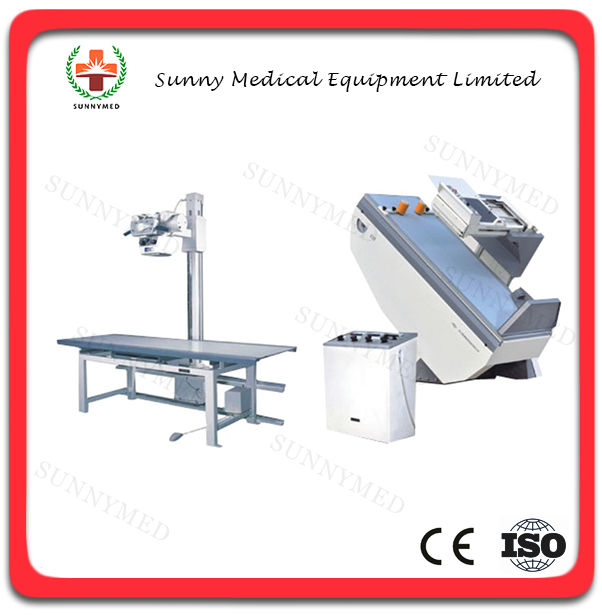

1)Equipped with single diagnostic table and x-ray rubes, single direct bridgefull-wave commutation,

tube voltage is 125kV, tube currency is 400mA.

2)X-ray tube capacity protection, anode starting-up protection

and radiograph time-limit protection device semi-conduct controlled, fluoroscopy computed time

device, x-ray tube over-hot protectorate provided,

ensure x-ray tube run safely long time, improve accuracy of kV mA S.

3)Bigger scope of rotation diagnostic table, movable table muli-item spot-film device, easy to operate,

radiation –proof, ensure operate and the tested.

4)Radiography table can move lengthways and crossover, can loaded all kinds of radiography dark box,

use conveniently and it is beautiful.

5)Applied in all kinds of hospital for radiography such as general body,beam filtration,and chest.

Department Technology parameters：

High voltage generator control table and high voltage transform assemble

Fluoroscopy Tube currency 0.3-5mA continuous currency

Tube voltage 45-110KV continuous voltage

Radiography Tube currency 50-400mA shift

Tube voltage 45-125KV continuous voltage

Exposure time 0.03-5s,23 shift

Power Voltage 380V±10%

Frequency 50Hz±1Hz

Capacity ≥30KVA

Inner resistance ≤0.3Ω

X-ray assembly Type of x-ray XD51-20.40/125

Focus 1×1.2×2 double focal

Rated rotate speed of anode 2800r/min

CDGI Multi function radiography table Moving table Lengthways ±600mm Electromagnetism locking

Across ±120mm

Mobile beam filtration grid Grid density 28L/cm

Grid ratio 8:01

Focusing distance 100cm

Scope of moving ≥600mm

Radiography item 5″×7″,8″×10″,10″×12″,11″×14″,

12″×15″,14″×14″,14″×17″

Distance from surface to film 75mm

Height of bed 700mm

Moving pillar ±180°,per 90°orientation, moving lengthways ≥1500mm

Bulb tube Rotate the cross arm±180,ascend $ descend 1100mm

Option

LSJ pillar radiography frame The scope of ascend and descend 1450mm

The minimum distance from focal spot 380mm

Radiography item 8″×10″ 10″×12″ 11″×14″ 12″×15″14″×14″ 14″×17″

Fixed beam filtration role Grid density 40L/cm

Grid radio 10:01

Focal distance 180cm
