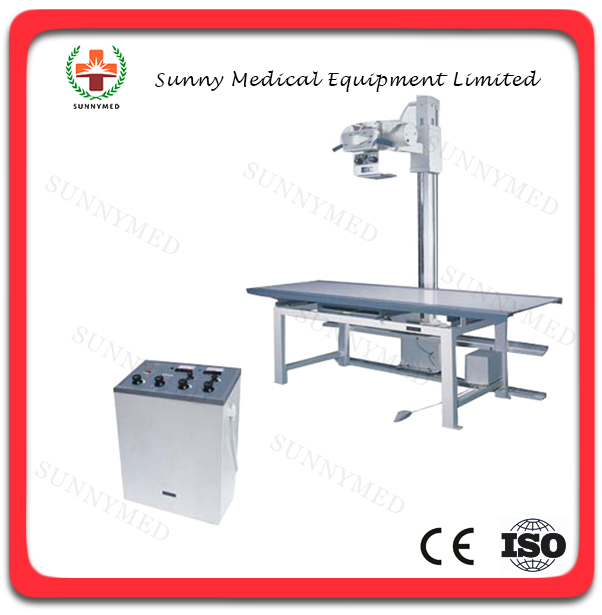

SY-D017 500mA radiography x-ray equipment for sale
Brand Name: Sunnymed
Model Number: SY-D017
Packaging Details: Carton or wooden case, standard export packing
Delivery Detail: In 10 days after payment received
Port: Guangzhou
MOQ：1 set
Description
1) Equipped with double diagnostic table and x-ray rubes, tube voltage is 125kV, tube currency is 500 mA,
single direct bridge full-wave commutation.
2) X-ray tube capacity protection, anode starting-up protection and radiograph time-limit protection
device semi-conduct controlled, fluoroscopy computed time device, x-ray tube over-hot protecionare
provided, ensure x-ray tube run safely long time, improve accuracy of kV mA S.
3) Bigger scope of rotation diagnostic table, movable table muli-item spot-film device, easy to operate,
radiation –proof, ensure operate and the tested.
4) Radiography table can move lengthways and crossover, can loaded all kinds of radiography dark box,
use conveniently and it is beautiful.
5) Applied in all kinds of hospital for radiography such as general body,beam filtration,and chest.
6) With the X-TV system and topography device interface, the function of compartment TV remote control can be upgraded.
| Department | Technology parameters | |||
| High voltage generator
control table and high voltage transform assemble |
Fluoroscopy | Tube currency | 0.3-5mA continuous currency | |
| Tube voltage | 50-110KV continuous voltage | |||
| Radiography | Tube currency | 100-500mA shift | ||
| Tube voltage | 45-125KV continuous voltage | |||
| Exposure time | 0.02-5s,23 shift | |||
| Power | Voltage | 380V±10% | ||
| Frequency | 50Hz±1Hz | |||
| Capacity | ≥30KVA | |||
| Inner resistance | ≤0.3Ω | |||
| X-ray assembly | Type of x-ray | XD52-30.50/125 | ||
| Focus | 1×1.2×2 double focal | |||
| Rated rotate speed of anode | 2800r/min | |||
| Changed beam limited device | Diagnosis table YS09D | Automatic, adjusted field of view | ||
| Radiograph table YS11S | Manually adjusted field of view,
luminosity≥100LX |
|||
| C15 Diagnostic table | Rotate of table | -15°~0°~90°automatic | ||
| Moving table | Automatic 700mm distance
moving lengthways |
|||
| Distance of focal table | 400mm | |||
