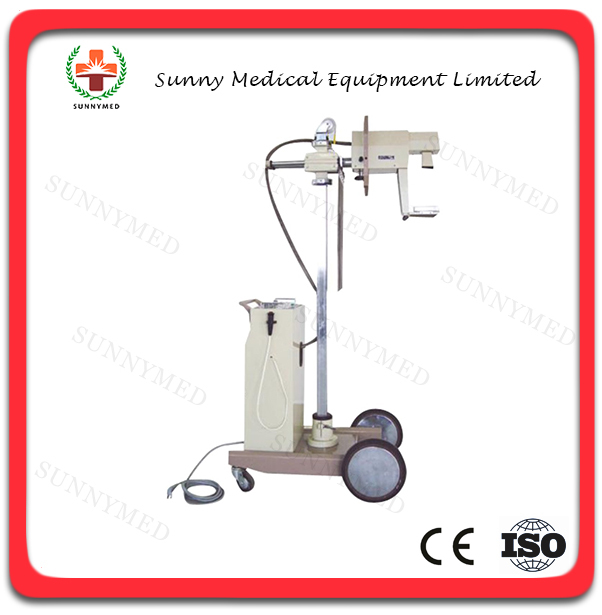

SY-D029 Medical mobile x ray inspection machine Mammography x ray machine

Brand Name: Sunnymed

Model Number: SY-D029

Packaging Details: Carton or wooden case, standard export packing

Delivery Detail: In 10 days after payment received

Port: Guangzhou

MOQ：1 set

Medical x-ray machine

GENERAL

It is used to diagnose early mamma pathological changes

Using the Mortared X-ray tube can show the pathological changes details.

A nipple areola cuticles fat galactophore canals glandular tissue connective tissue and

blood vessels can be seen in the picture.

It has high correctness for distinguishing benign tumor and malignant tumor.

It can be moved to sickroom to photograph beside bed.

The unit can also be used to find foreign matters in human body to do nondestructive inspection

of right metal and nonmetal materials.

MAIN TECHNICAL PARAMETER
Main character	Shockproof, single focus and bridge rectification
Max rated capability	Current		30mA
	Voltage		34kVp
	Time		2s
Power supply	Voltage		180~240V
	Frequency		50Hz
	Power		not lower than 1.3kVA
Range of the timer	0.4~2 s
Film size	127mm×178mm
The movement of camera head mounting.	vertical	630 mm		Adapt to different part of human
	rotation	±180°
The camera head mounting horizontal range.	160 mm
Rotating angle of the module of the camera head mounting and the pole.	180°
Specification of X-ray tube/focal spot value	XD7 – 1.05/35 1mm×1 mm Stationary anode, single focus
Transport dimension,Weight	76×103×202(cm), (GROSS)200kg
