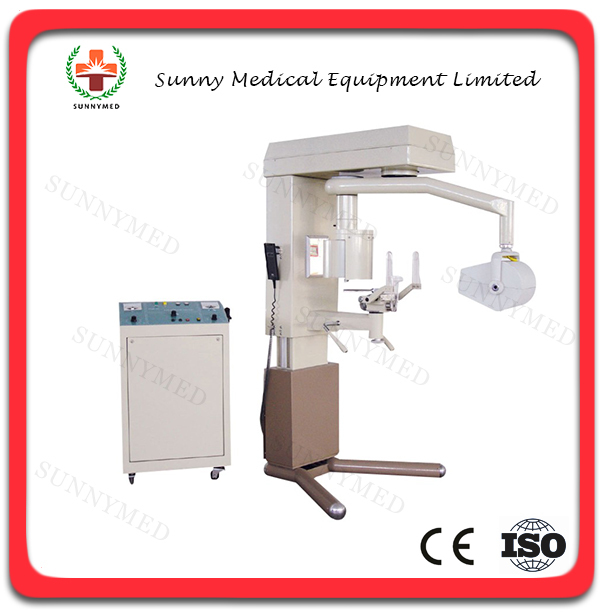

SY-D044 Radiology Equipments Medical Panoramic x-ray machine

Brand Name: Sunnymed

Model Number: SY-D044

Packaging Details: Carton or wooden case, standard export packing

Delivery Detail: In 10 days after payment received

Port: Guangzhou

MOQ：1 set

Medical x-ray machine

GENERAL
It is designed on the principles of x-ray drum curvature tomography.
A small focus x-ray tube is adopted only for dental. It makes the picture clearer.
The unit can radiograph a complete view of curvature of the whole teeth in a picture. The picture includes sinuses, nasal sinus, maxillary, mandibular structure and the whole 32 teeth, temporal, lower jaw joint and its combined relations.
It takes the unit only 16s for a rotational radiography to shoot a panoramic view of whole Dental-Maxilla-Facial region.
An elevating motor is used in the unit, to raise or lower its gantry for radiography the people of different height.
It can also be used for oral surgery and facial orthopedics.

GENERAL

It is designed on the principles of x-ray drum curvature tomography.

A small focus x-ray tube is adopted only for dental. It makes the picture clearer.

The unit can radiograph a complete view of curvature of the whole teeth in a picture.

The picture includes sinuses, nasal sinus, maxillary, mandibular structure and the whole 32 teeth,

temporal, lower jaw joint and its combined relations.

It takes the unit only 16s for a rotational radiography to shoot a panoramic view of whole Dental-Maxilla-Facial region.

An elevating motor is used in the unit, to raise or lower its gantry for radiography the people of

different height.

It can also be used for oral surgery and facial orthopedics.

MAIN TECHNICAL PARAMETER
X-ray generator	Single focus, half-wave rectification and oil-immersed self-cooled
Max rated capability	Current	10mA
	Voltage	90kVp
	Time	16 sec
Power supply	Voltage	180~240V
	Frequency	50Hz
	Power	not lower than 1.8kVA
	Resistance	not larger than 1Ω
Voltage adjustment range of x-ray tube	(divided into 8 steps)55~90kVp
Film size	150mm×300mm
Specification of X-ray tube	0.8mm×0.8mm only for dental
Distance between the chin bracket to the floor	800mm (min) 1120 mm (max)
Panorama shoot time	16s
Transport dimension,Weight	100×162×174(cm), (NET)200kg/ (GROSS)320kg
