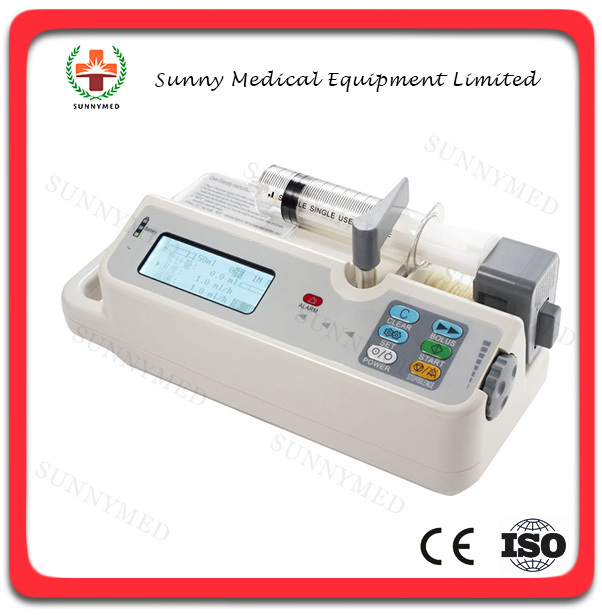

Technical parameters of Syringe pump
| Applicable syringes | All brands of standard syringes:
5ml,10ml,20ml,30ml,50ml |
Weight | <3.0kgs | |
| Accuracy | ±2% | Dimension | 310*125*115mm | |
| Injection increment | 0.1ml | Power supply | AC100~240V, 50/60Hz | |
| Occlusion value | 40kPa~160kPa | Fuse | T2AL250V~ | |
| Injection rate | 5ml: 0.1 ml/h -100ml/h
30ml: 0.1 ml/h -600ml/h 10ml: 0.1 ml/h -200ml/h 50ml: 0.1 ml/h -1500ml/h 20ml: 0.1 ml/h -400ml/h |
Maximum power
consumption |
25W, can run for 4h
after being recharged |
|
| Battery | Rechargeable lithium
polymer battery, 7.4V, 1600mAh |
|||
| Accumulated
injection volume |
0.1ml~9999.9ml |
Battery recharge |
When the pump is connected to
the AC power supply, turn on the power and the battery will automatically recharge (about 8~14 hours to recharge fully.) |
|
| Modes of operation | Selectable: Rate mode,
Time mode, Body Weight mode |
|||
| Time mode | Volume limit:
0.1~999.9ml Time: 1~2000 minutes |
|||
| Electrical safety
|
Comply with the stipulation
of IEC60601-1: 1996 |
|||
| Body weight mode | Drug limit:0.1~999.9mg,
Solution limit:0.1~999.9ml, Weight: 01~300.0kg, Dose: 0.1~9999.9 mg/kg/h, ug/kg/min |
|||
| Electromagnetic
compatibility |
Comply with the stipulation
of IEC60601-1-2: 2006 |
|||
| Displayed information | Rate, volume limit,
accumulated injection volume, syringe size, pressure value, battery capacity, unit of medical dosage, bed No., AC power indicator, battery charge indicator, drug name, bolus rate |
Shell material | ABS plastic | |
| Classification | II Class-BF | |||
| Alarm function | OVER, NEAR, Occlusion,
Low battery, Syringe disengaged, No AC power supply, serious low battery |
Operating conditions | Environment temperature 5°C ~40°C,
air pressure 80kPa ~106kPa, relative humidity ≤80% |
|
| Storage conditions | Environment temperature -40°C~55°C,
air pressure 50kPa ~106kPa, relative humidity ≤95% |
|||
| KVO rate | 0.1ml/h-5.0ml/h (selectable) | Applied standards | IEC60601-1: 2005
IEC60601-2-24: 1998 IEC60601-1-2: 2006 ISO780-1997 ISO15223: 2000 ISO7886-1: 1993 ISO / IEC: Guide No. 37« Consumer Goods Usage Instructions» |
|
| Bolus rate | 5ml: 100ml/h
10ml: 200ml/h 20ml: 400ml/h 30ml: 400ml/h-600ml/h 50ml: 400ml/h-1500ml/h |
