Description

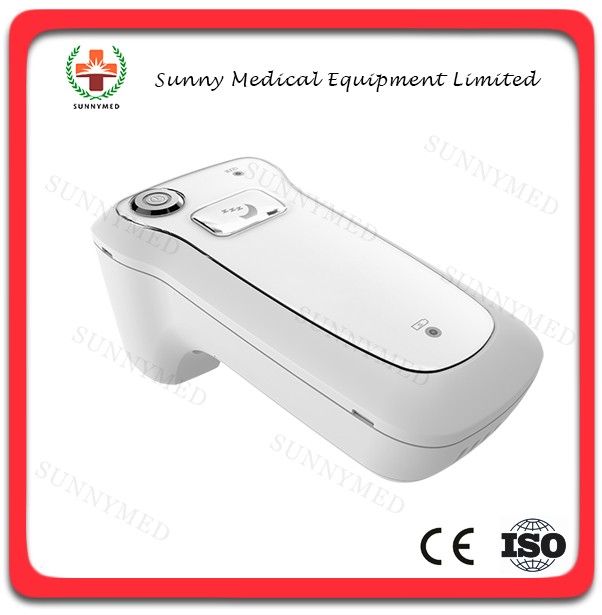

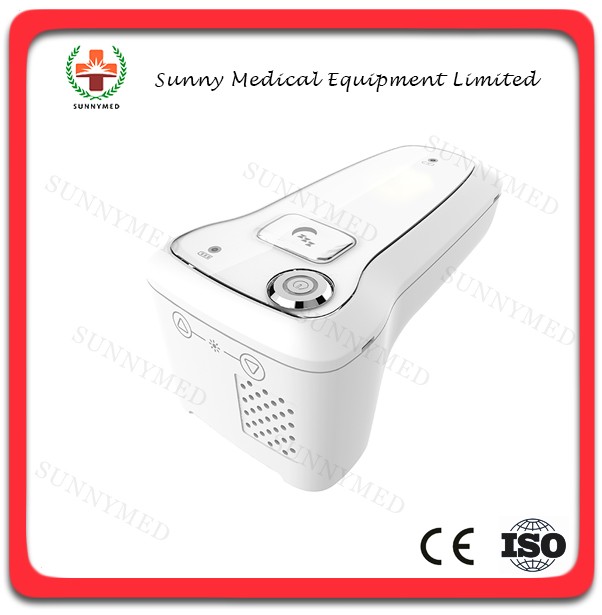

[Structure]Handheld portable infrared vein finder consists of light source, image processing module,

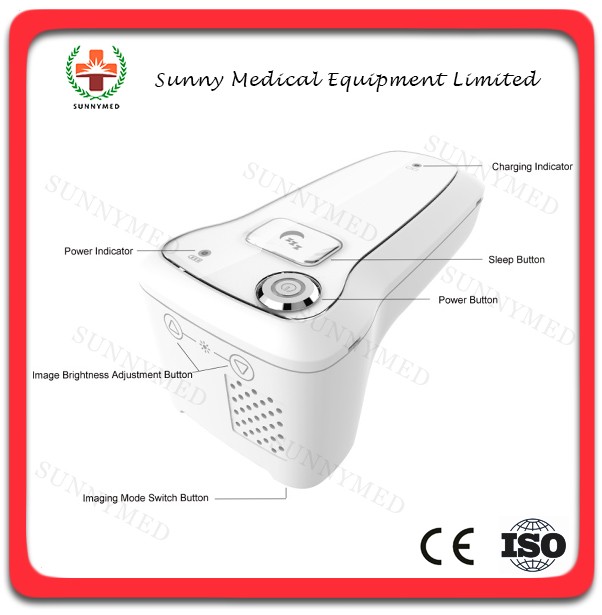

battery and case. The case includes function buttons and indicator lights.

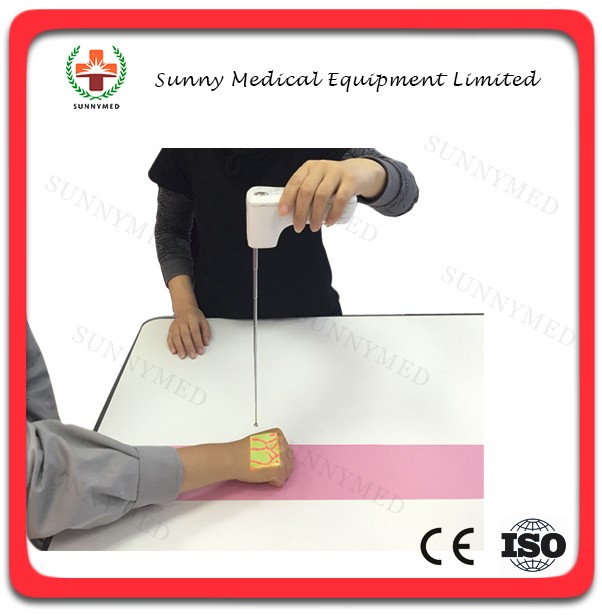

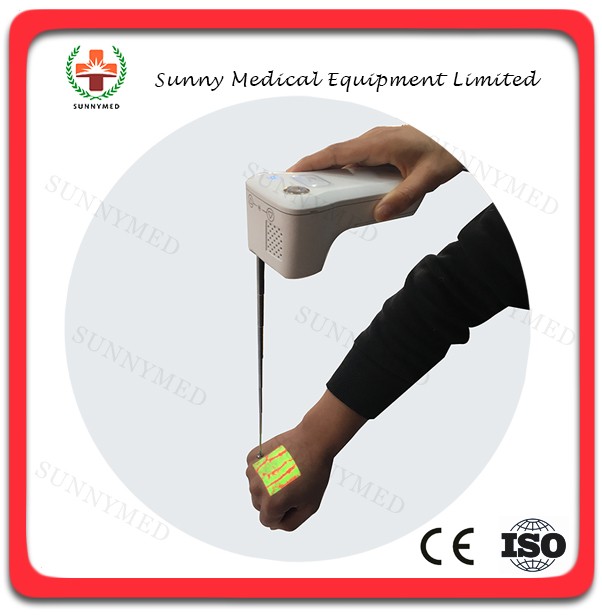

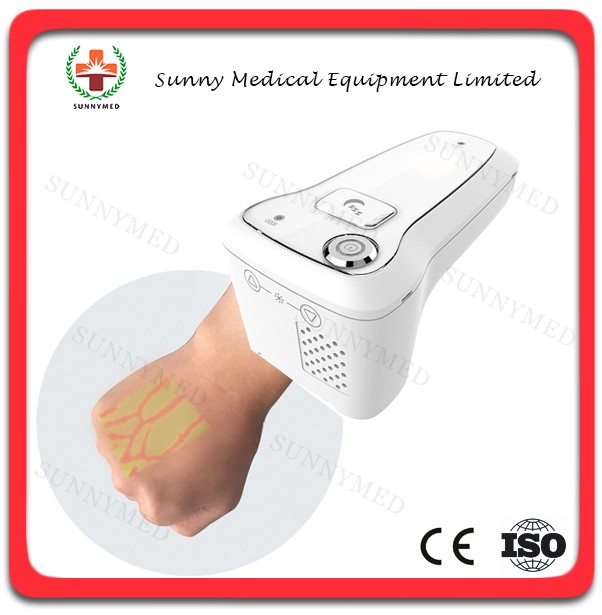

[Operating Principle]Handheld portable infrared vein finder acquires image of subcutaneous veins,

the image which  results from  dealing with image signal is projected onto the surface of the skin.

Thus, subcutaneous vein image will be displayed onthe skin surface of the corresponding position.

[Technical Parameter]

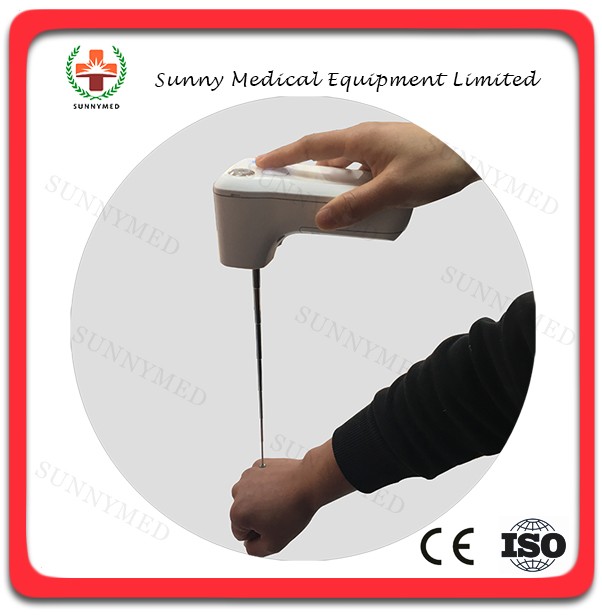

Effective positive projection distance: 29cm~31cm

Light projection: 300lux~1000lux

Active radiation contains wavelength light: 750nm~980nm

Electrical source: lithium ion polymer batteries

Service voltage: d.c. 3.0V~4.2V

Net weight: 0.28±0.02kg

Prevent into the liquid level: IPX0

[Attention and Caution]

1. Handheld portable infrared vein finder is a kind of medical equipment which

forms the subcutaneous vein image in situ for contactless.

2. In order to accurately examine the position of the vein, it is suggested put the

product at the proper height and angle, and keeps the product located in the center of the target vein.

3. Don’t look straight at the light source when it is working.

4. This product belongs to the electronic equipment. There could be outside interference by

electromagnetic signal. So please stay away from other equipments when using.

5. It is suggest that the instrument should not be used when it is charging.

6. The instrument has no waterproof function, please keep it from liquid.

7. Please do not open, disassemble or repair the instrument by yourself.

8. If the product is expected to be not used for a long time, please charge the product fully, clean and

package it in a dry, shady and cool place to store by the original packaging materials. Please avoid putting

the product upside down and under heavy stuff when storaging.

9. This product contains lithium polymer batteries; it is strictly prohibited to put the product into the fire.

Don’t discard at will and contact the manufacturer for recycling.

[Maintenance]

1. 1. It is suggested to maintain regular equipment, ensure it enough clean before use.
2. 2. Attention for instrument maintenance matters:
   1. a. The instrument has no waterproof function, please keep it from water and don’t operate with wet hands.
   2. b. Please do not use the method of ultraviolet irradiation or high temperatures for disinfection.
   3. c. It is suggested that do not charge the instrument when it is maintained.
   4. d. You can disinfect the instrument by a clean dry cloth which is wet with soap, medicinal alcohol and twisted dry.

[Storage Environment]

Store in the cool, dry, dark place where temperature is between 5℃ to 40℃ and relative humidity does not exceed 80%.
