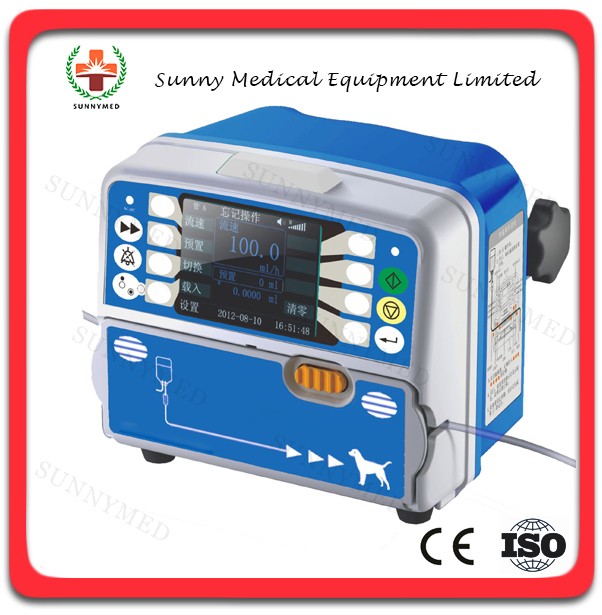

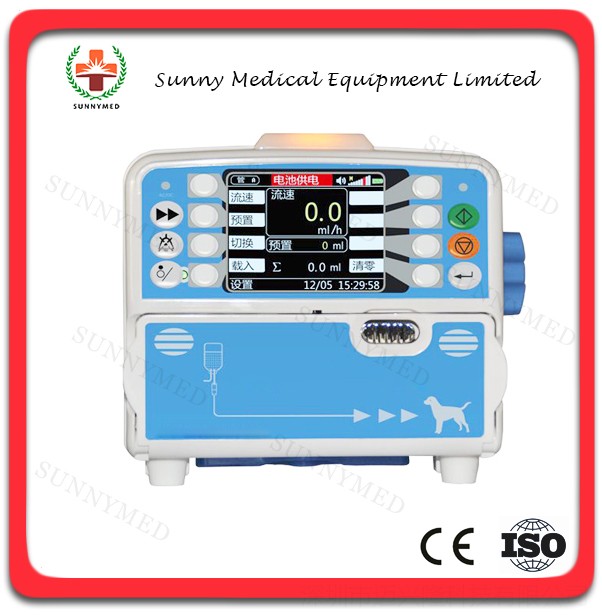

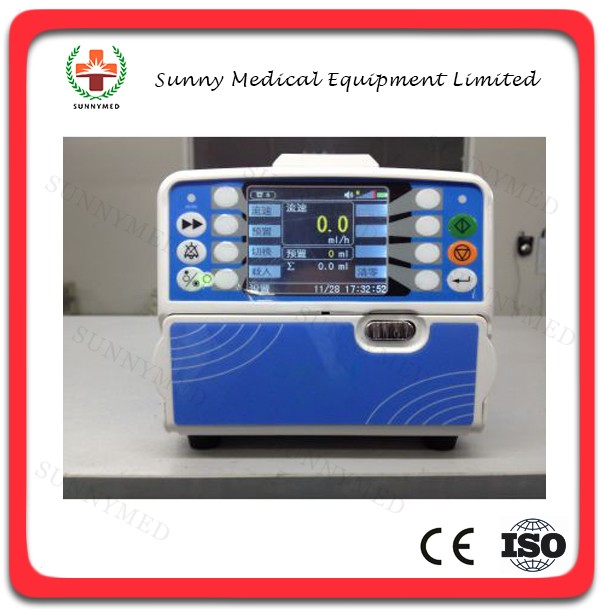

SY-G089 Medical Devices Portable Vet IV Pumps Type Vet Infusion Pump

Brand Name: Sunnymed

Model Number: SY-G089

Packaging Details: Carton or wooden case, standard export packing

Delivery Detail: In 10 days after payment received

Port: Guangzhou

MOQ：1 set

Description

Feature :

Compact design
The compact and light weight design saves space and is beneficial during patient transfer

Free flow protection
The built-in flow stop feature helps reduce the risk of accidental freeflow prevent free flow when pump door is open.

Anti-bolus function
Diminishes the volume of unwanted Bolus injected to the patient after removal of the occlusion cause.

Versatile functions
2000 history records
RS232 interface
Real time display
Adjustable buzzer volume (3 levels)
3 adjustable occlusion pressure settings
Four levels of air in line alarm adjustable

User-friendly operation
Soft key design, easy to operate
Load directly the last infusion rate and volume limit

Model	SY-G089 Veterinary Infusion Pump
Flow rate range	0.1~600 ml/h
Infusion mode	rate mode, drip mode ( ml/h and drops/min can be switched)
Volume to be infused (VTBI)	0 ~ 9999 ml
Volume Infused (∑)	0 ~36000 ml
Infusion accuracy	±5%
Applicable infusion set	Support a wide variety brands of infusion set including major manufacturers & selected local brands
KVO rate	1 ~ 5 ml/h
Bolus rate	300~600 ml/h
Purge	600 ml/h
Air bubble detection	Ultrasound sensor detection with four levels of air in line alarm adjustable
Occlusion pressure	3 adjustable occlusion pressure settings: low, middle and high
Alarms	Visual and audible alarms: Door Open, Air-In-Line, Occlusion, Infusion completion, infusion near over, Start reminder function, Low Battery, Battery depleted, malfunction etc.
Computer Interface	RS232 (optional)
History records	2000 history records
Power supply	AC:100~240V,50/60Hz DC:12V ±1V
Battery	Rechargeable lithium polymer battery,7.4V,2100mAh Can operate for more than 3 hours after fully charged at 25ml/h.
Battery recharge time	10hs recharging when machine is turned on, 3hs recharging when machine is off.
Power consumption	25VA
Classification	Class I, type CF
Water Proof Level	IP×3
Mode of operation	continuous
Dimensions	145×100×120 mm(length×width×height)
weight	≤1.4kg
Operating conditions	Temperature:5℃~40℃,relative humidity:10~95%, air pressure:86~106kPa
Transport conditions	Temperature-20℃~+60℃,relative humidity:10~95%,air pressure:50~106kPa
Storage conditions	Temperature-20℃~+45℃,relative humidity:10~95%,air pressure:50~106kPa
