SY-GW601 Combination standard monitor led light source CCD endoscope camera

Brand Name: Sunnymed

Model Number: SY-GW601

Packaging Details: Carton or wooden case, standard export packing

Delivery Detail: In 10 days after payment received

Port: Guangzhou

MOQ：1 set

Endoscope, Video endoscope

Description

HD recorder + endoscopy ccd camera + led light source + standard monitor

Features :

1. HD endoscope video camera adopts three chip technology,high quality and inexpensive,sharp images,economy and durability .

2.Two video output ports and for connecting this camera to display directly or computer .

3. White Balance adjusts model supported .

4.Software for this system working in WINOWS XP is very easy to operate, and supply the Software license with extremely low price.

5. Widely used in cardiovascular, brain surgery, general surgery, gastroenterology dept. anorectum, ophthalmology and otorhinolaryngology, gynaecology and many other departments .

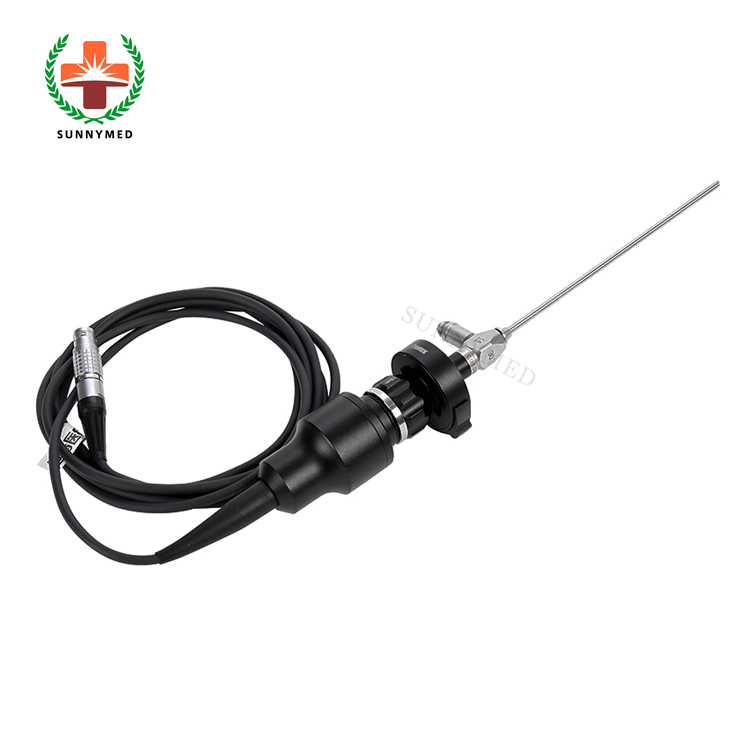

Endoscope CCD Camera
Image device	1/3 CCD		SNR	≥50dB
SY	PAL		Brightness	ODS Adjustable
Total Pixels	N:811(H)*508(V)	P:795(H)*596(V)	Backlight processing	Wide dynamic (rank adjustable) / backlight compensation/strong inhibition
Effective Pixels	N:768(H)*494(V)	P:752(H)*582(V)	Synchronous system	Internal Synchronization
Scanning system	2:1 interlaced		White balance	ATW1/ATW2/MANUA
Scan frequency	N:15.734KHZ 59.94HZ	P:15.635KHZ 50HZ	Acutance &saturation	Turn on/off grade adjustable
Scanning mode	Interlaced scanning		AG	Low/medium/high/off grade adjustable

Cold LED Light Source
Input power	30VA	Light output hole diameter	φ (10±0.10) mm
Power supply	ac. 100-240V 50/60Hz Tolerance±1%	Light image temperature	≤80℃
	Tolerance±1%	temperature
Light source	LED	Working conditions	5℃~ +40℃
Effective optical power	≥100mW	Lamp service life	≥20000h
Brightness	≥190,000Lux	Storage conditions	-40℃ ~ +55℃
