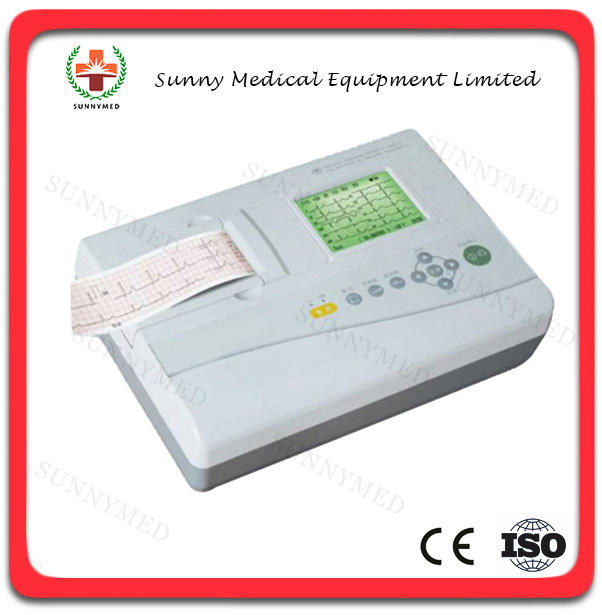

SY-H001 Guangzhou Medical Hospital Cheap Single Channel ECG
Brand Name: Sunnymed
Model Number: SY-H001
Packaging Details: Carton or wooden case, standard export packing
Delivery Detail: In 10 days after payment received
Port: Guangzhou
MOQ：1 set
Description
Dimension:288mmX204mmX60mm
Packing:380mmX300mmX210mm
Weight:4.3kg(gross); 3.27kg(net)
Single channel with measurement report
Build in rechargeable Ni-MH battery
Chinese/English language
Simultaneous 12 leads
320X240 graphic LCD, 3.8 inch screen
Paper size: 50mmX20/30m

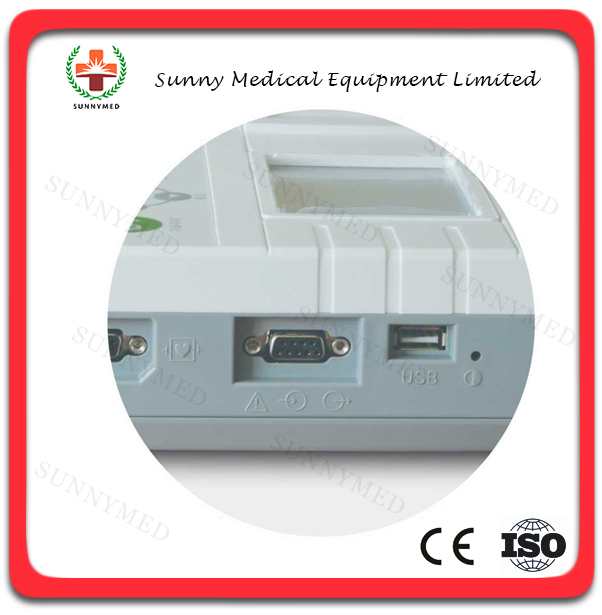

Built in RS232 interface (USB is optional)
8 Patients save/copy/communication
| Items | specification |
| Lead | standard 12 leads |
| lead acquisition | synchronously 12 leads |
| Data acquisition | 18bit/1000Hz |
| Record mode | Manual mode; Auto 1; Auto 2; Auto 3 |
| Filter | AC, EMG,Drift Filter |
| CMRR | 100dB(with AC filter) |
| Input circuit | Floating; Protection circuit against Defibrillator effect |
| Input circuit current | ≤0.1μA |
| Input Impedance | ≥2.5MΩ |
| Patient current leakage | <10μA |
| Calibrating voltage | 1mV±2% |
| Voltage Tolerance | ±500mV |
| Time constant | >3.2s |
| Frequency response | 0.05 ~150Hz |
| Noisy level | ≤15μVp-p |
| Sensitivity valve | ≤20μV |
| Inter-Channel Interference | ≤0.5mm |
| Paper speed | 25,50mm/s(±3%) |
| Sensitivity | AUTO,2.5,5,10,20mm/mV |
| Recording mode | Thermal Array printing |
| Paper specification | 50mmx20m,roll |
| LCD display | 320×240 graphic LCD,display status&waveform. |
| Safety classification | IEC60601-1 class I, type CF |
| Power supply | AC : 110V/220V/85~265V,50/60Hz±1Hz;30VA |
| DC :12V(1500mAh) rechargeable Ni-MH battery | |
| Fuse | AC extend T500mA/125V 5x20mm
AC extend T250mA/250V 5x20mm AC extend T2.0A/250V 5x20mm |
