SY-O001 Guangzhou Hemodialysis Machine dialysis machine

Home Dialysis machine SY-O001 Guangzhou Hemodialysis Machine dialysis machine

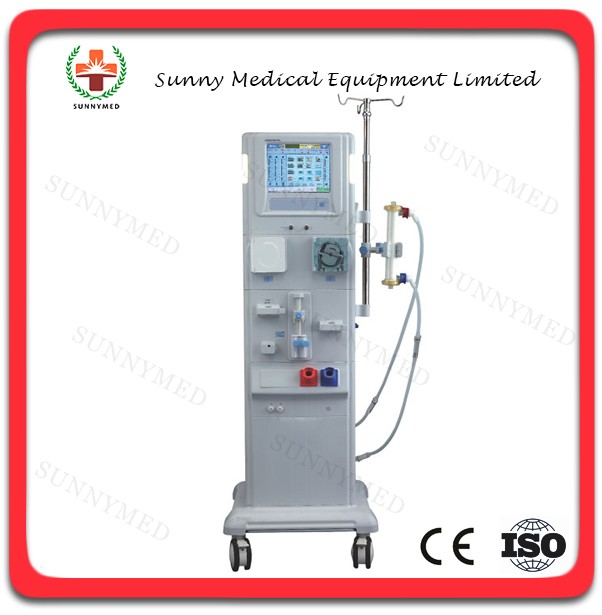

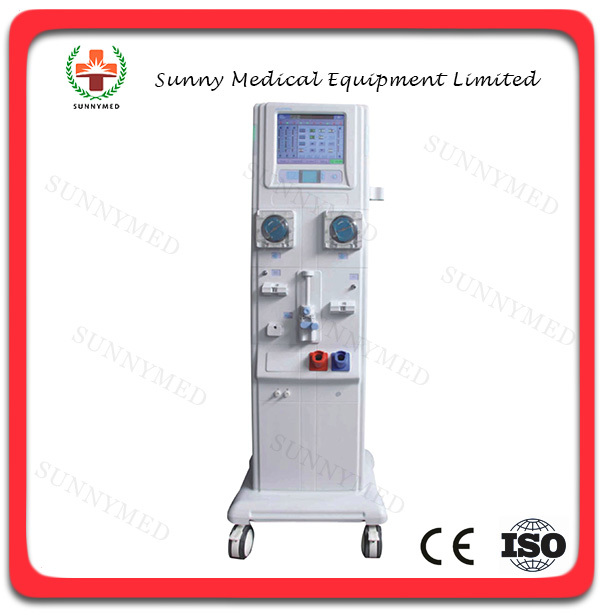

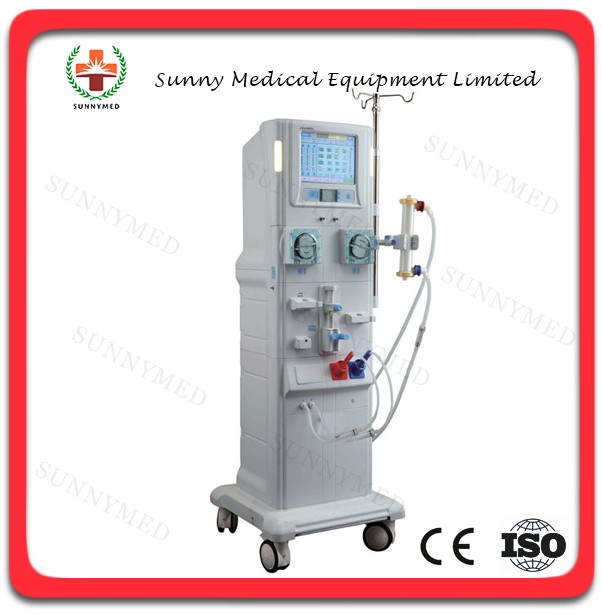

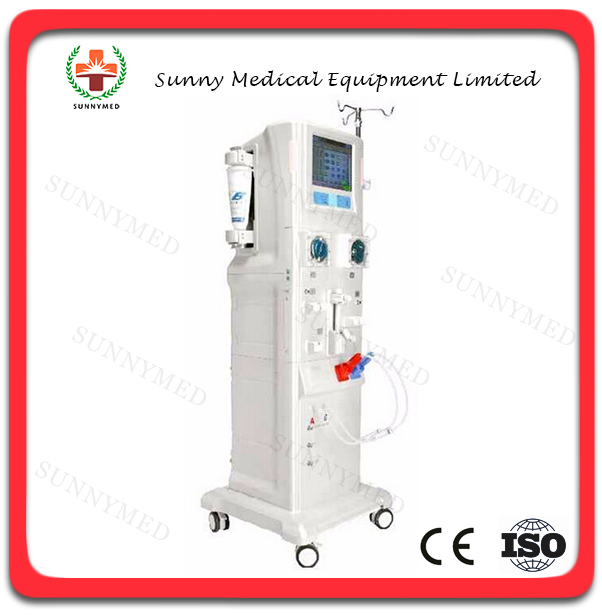

SY-O001 Guangzhou Hemodialysis Machine dialysis machine

Brand Name: Sunnymed

Model Number: SY-O001

Packaging Details: Carton or wooden case, standard export packing

Delivery Detail: In 10 days after payment received

Port: Guangzhou

Dialysis machine2017-06-07Sunnymed

Description

Clinical Application:



>  Hemodialysis (HD)



>  Pure Ultrafiltration (ISO UF)



>  Hemoperfusion (HP)



>  Hemofiltration (HF)



>  Plasma Exchange (PE)





Product Features:



· LCD touch screen with high definition(10.4″).



“· Automation: Self-test, rinse, disinfection, hot disinfection, ISO UF, shutdown, etc.



Automatically start treatment once blood flow sensed.”



· Bicarbonate dry powder cartridge.



· Use with dialysis fluid of various formulas (acetate & bicarbonate).



· Kt/V function.



“· Double pumps: blood pump and spare pump providing more treatment options;



Compatible with blood lines of different diameters.”



· Single & Double needle dialysis.



· Using magnetic valves made in Switzerland.



· In-built battery backup for max. 30 minutes.



· Dialyzate flux linearity adjustable (300~800mL/min).



· Support bedside treatment.



· HCO3 adjustment for serious acid toxicosis patient.





Safety Guaranteed:



Audible & visible alarm with warning messages & troubleshooting.



· Blood flow monitoring.



· Arterial and Venous pressure monitoring.



· Transmembrane pressure(TMP) monitoring.



· Non invasive blood pressure(NIBP) monitoring.



“· Air Monitoring:



Air bubble detector using infrared sensor; Blood level detector using ultrasonic sensor.”



· Blood leak monitoring.



· Water way entirely aparts from electric way.



· Dialyzate temperature is selectable between 35 and 39 ℃.



· Conductivity is controllable.



· Sodium and ultrafiltration profiles for various treatment conditions.



· Heparin pump timing for safety and convenience.



“· Disinfection: Rinsing, hot disinfection, chemical disinfection;



Double-circulation disinfection system:



Fluid supply loop and return loop are completely separated during disinfection to avoid



pollution of the whole machine in case of mis-sucking disinfection liquid. This gives



protection from intercross infection.”





Technical Parameters:



General Data



· Dimensions:  370x340x1420mm (LxWxH)



· Weight:  90 Kg



· Water inlet pressure:  0~0.6MPa



· Water inlet temperature:  5~30℃



· Ambient temperature:  10~30℃



· Relative Humidity ≤70%



Extracorporeal Circuit



· Arterial pressure monitoring:



Display range:  -300~+300mmHg (±10mmHg)



· Venous pressure monitoring:



Display range:  -50~+300mmHg (±10mmHg)



· TMP range:  -100~+600mmHg (±20mmHg)



· Blood pump/ Spare pump:



”  Flow range:  15~340mL/min (φ 6mm)



20~620mL/min (φ 8mm)”







· Blood level detector:  ultrasonic sensor.



· Air bubble detector:  infrared sensor.



”  Threshold of reaction: single air bubble of 200 μI



exists when blood flux is 200mL/min”





· Heparin pump:



”  Delivery range:  0.1~10mL/hr (±5%)      Accuracy:  0.1mL/hr



Injector size:  10/20/30mL,  20/30/50mL (optional)”







Electrical Data
· Power:  1500W                  · Frequency:  50/60Hz
· Voltage:  AC220V±10% (110V optional)
Dialysis Fluid Circuit
· Dialysate flow range:  linearity adjustable 300~800mL/min
· Dialysate temperature range:  Selectable 35~39℃
· Dialysate conductivity range:  13~15.5mS/cm (±0.1mS/cm)
· UF flow range: 0~4000mL/hr (±30mL/hr)
· ISO UF flow range: 0~2000mL/hr (±30mL/hr)
· Blood leak detector:
  Automatically close the blood loop when blood leak ≥1mL per
liter dialysate (Flow: 500mL/min)

· Disinfection: Use citric acid, peracetic acid and sodium hypochlorite.
· Hot rinse temperature:  90℃
