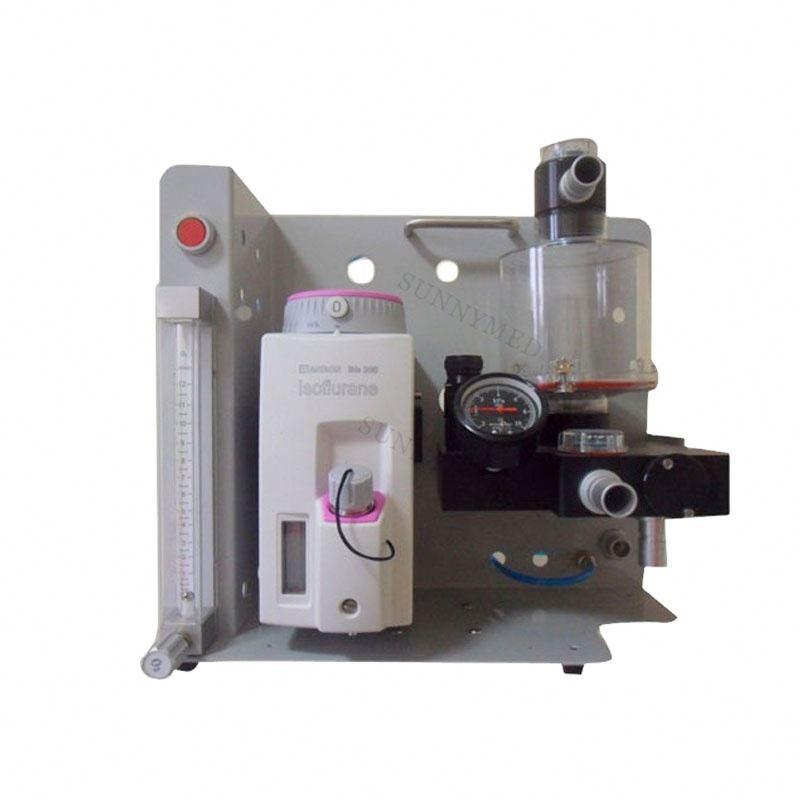

Description
Gas source:O2,quick inlet port
O2 FLUSH: 20L /min- -75L /min
Flow meter: O2, 0L/min – -4L/min, adjustable easily
Airway pressure gauge:-20cmH2O-100cmH20
Pop Off valve: adjustable easily,
visible dome- type, ISO standard port, diameter 22mm
Soda lime chamber:0.8 Liter, easy to change soda lime within one minute
Bains connector: open breath system, like Bains circuit and Jackson circuit
Anesthesia vaporizer: one of Enflurane, Isoflurane, Halothane and Sevoflurane vaporizer. supply selectatec compatible mounting bar, ISO 23mm mounting bar is also compatible.
Three methods: table top and trolley and wall mounting arm, trolley is optional and wall mounting arm is optional.

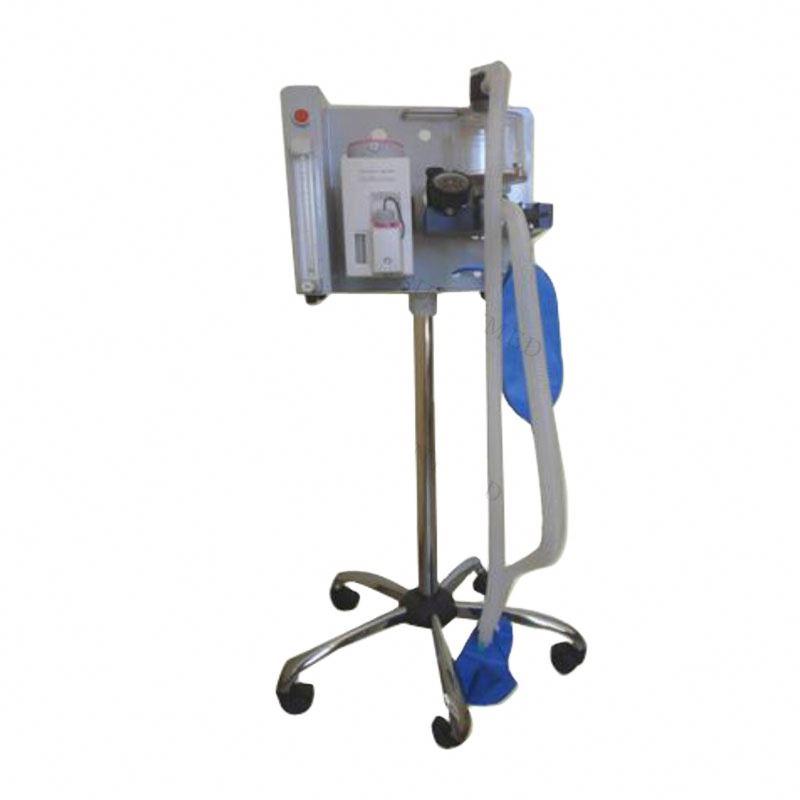

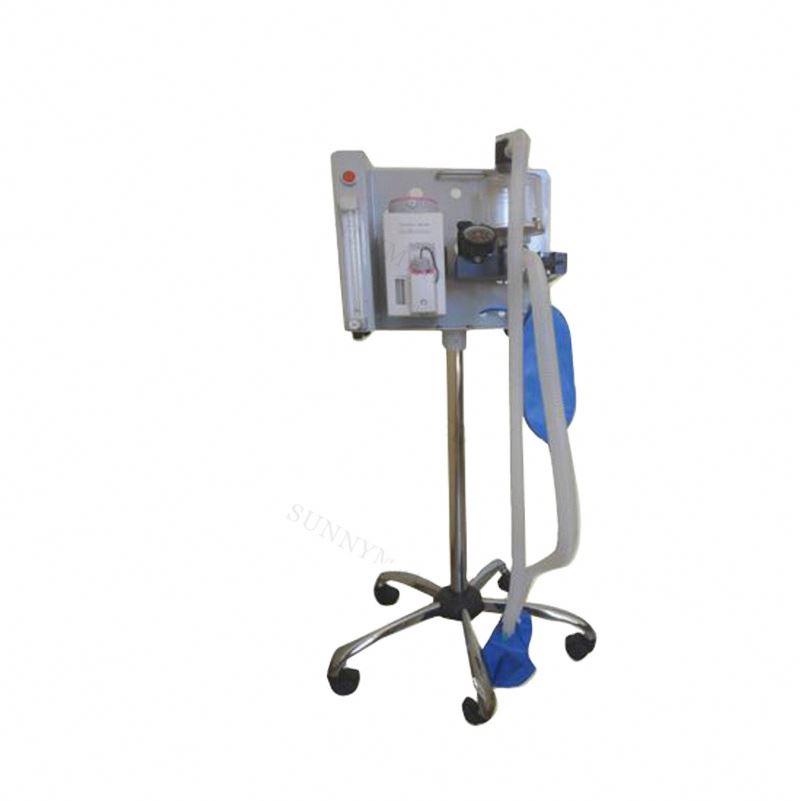

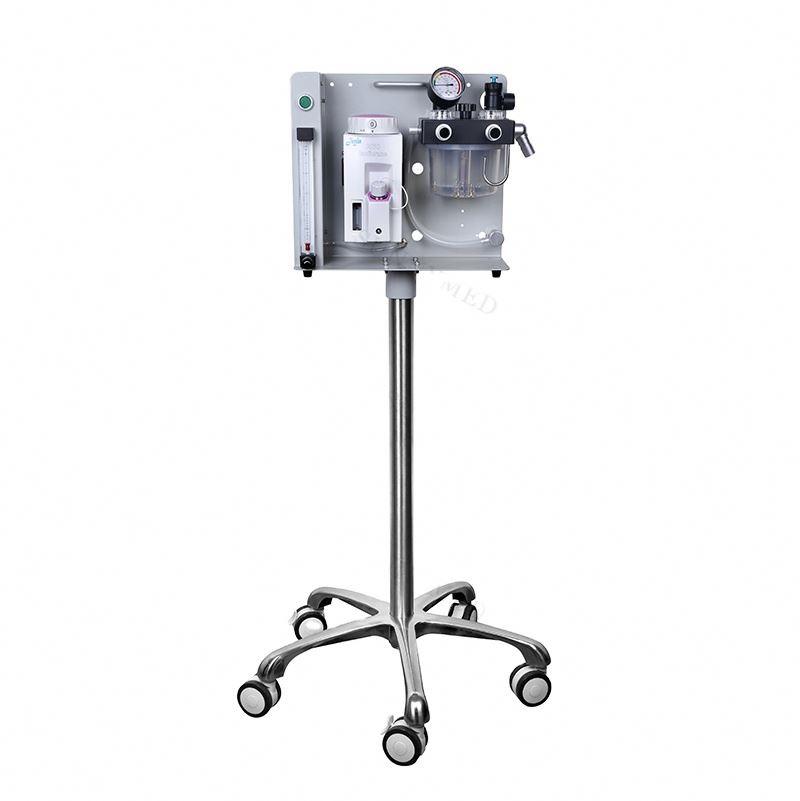

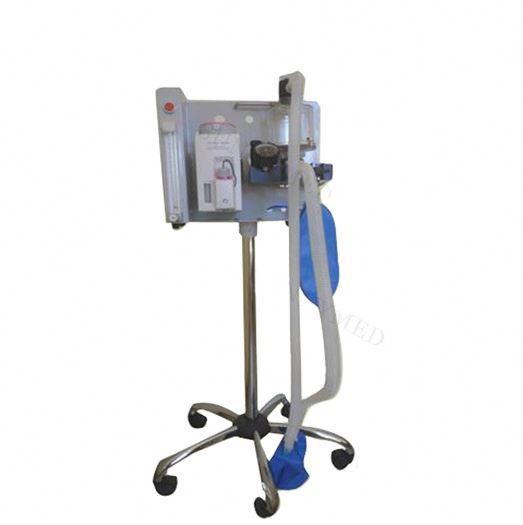

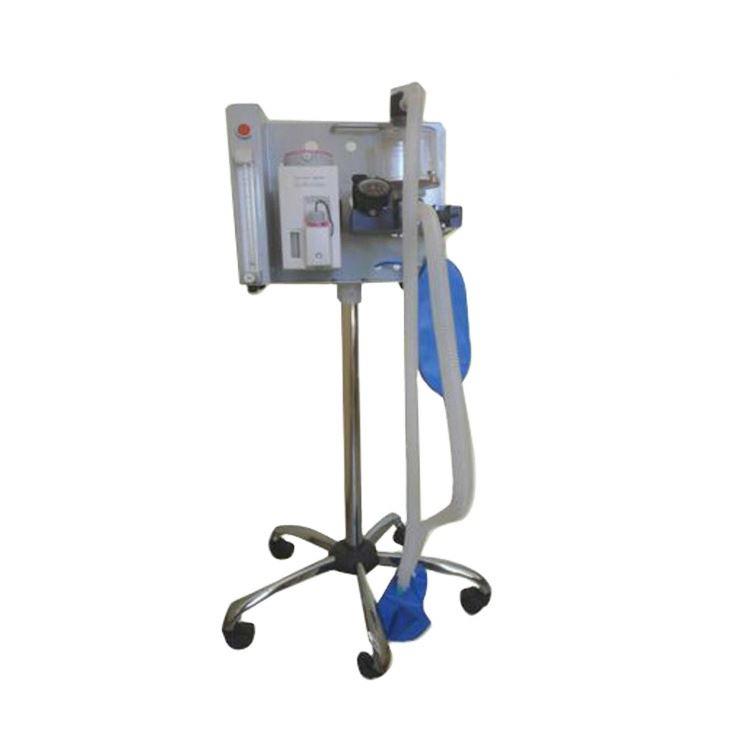

Trolley: 5 casters spider with aliminium alloy material, and 50mm diamter pole with 304 stainless steel material, it is optional.
Wall mounting arm: two joints with aluminium material, every joint is 25cm length, it is optional.
Standard configuration:
Anesthesia machine, one unit x60 vaporizer, two set disposable breath circuits, four unit reservior bags, one unit O2 gas source pipeline. The trolley is optional, the wall mounting arm is optional.
