Description

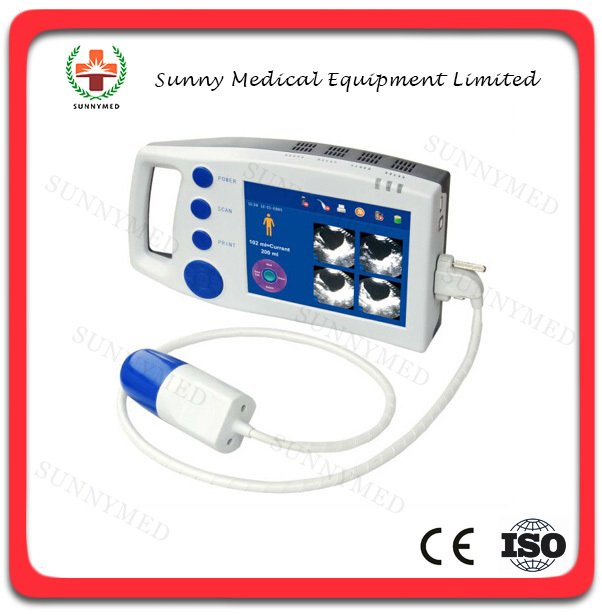

Bladder scanner is a portable device with advance 3-D Ultrasound technology and dedicated for

noninvasive measurement of bladder filled volume. It can speedily complete the detection of bladder

area through pre-scan of probe connected with the device and the display used color TFT LCD. Its

measured result can be printout with thermal printer and also can be stored in the built-in flash-disk to

send to the computer through USB interface. By this provides clinical data for judging the opportunity to

apply catheterization, which reduces the frequency of catheterization and risk of UTI. It is also intended

for evaluation of the residual volume after urination, evaluating treatment effect of a medicine or treating

plan. The power for the device comes from built-in battery.

Feature:

Light weight, easy to carry, accurate,safety,operating easily

Portable, design and battery-driven, it offer great convenience to use
Save Patient info and image up to 100 cases

Display real-time bladder image and position in-phase

Automatically measurement and display its result.
With USB interface can send the report to PC

Limitation of unnecessary catheterization
Reduction rates of urinary tract infection
Help in managing incontinence
Enable wide diagnose and anatomic measurement of bladder

Most common application area:
urinary incontinence,
urinary retention,
urinary tract infections

Obstetrics, Gynecology, Rehabilitation, Pediatrics,

Note:
It cannot be used on wounded skin.
For patients with hypertrophy of the prostate, space occupying disease or scars, there is a risk of

producing a result exceeding the given accuracy range.

Technical Specification:

1.Transducer freq: 2.6MHZ

2. Scan method : Mechanical scan

3. Sway angle:  120°±2°

4. Rotating angle: 180°±2°

5. Scan depth:≥140 mm;

6. module volume:128±10ml;(See Annex 1 module calibration)

7. Display screen: 8.0” TFT color LCD;

8. Power supply for the device: internal battery

9. Battery: Voltage 7.4V( standard value), capacity:  ≥5200mAh;

Charge the batteries: charge for 3.5-4 hours full;

Full batteries: sustainable use for 4.5 hours(In the ready state);

10. Battery control: capacity instruction and alarm for lower power

11.Regarge device: power adapter ~220V±10%;

Output voltage 8.4± 0.1V;

12. USB interface: for saving data and upgrade software

13. Serial interface: for printer

14. Printer: for printing micro characters, graphic and image

15. Screen display: 4 pieces of cross-section ultrasound image , measurement result, real-time

date, time and hospital name.

16.Patient ID: 8 digits

17.Max. measurement:  999ml;

18.Measurement difference : 0≤V≤999ml, ±15%.

19. Measurement methods: After pre-scan, the measurement will be automatically down after

press “ scan” key for one time.

20. Selection of measurement location: A directive for detection of location will guide you to the object

zone before effective measurement while you make measurement.

21. Gender for male, female, Paediatric.

22. Language of interface: English

23. Dimension:320x180x65mm

24. Weight: 1.8 KG
